The NANO 320 DC is an ultra-modern, pocket-sized charger that can charge all different types of LiFe, LiIon, LiPo, LiHV, NiMH, NiCd and PB batteries.
The NANO 320 DC integrates all the best features in a tiny charger. With the new interface, the NANO 320 DC is one of the easiest chargers to use, enabling you to start charging faster than ever.
The NANO 320 DC uses a 32-bit processor to enable faster, more accurate calculations to ensure the best charging accuracy.
Don't let this small size fool you into thinking it can't cope with larger chargers, the NANO 320 DC can deliver up to 320W of charging power. The 16,000rpm high-speed fan keeps your charger cool to ensure optimum performance.
The NANO 320 DC can charge lithium batteries from 1 to 6 cells, nickel batteries from 1 to 15 cells or lead-acid batteries from 2 to 20V.
Charging current is adjustable from 0.1 to 15.0 A.

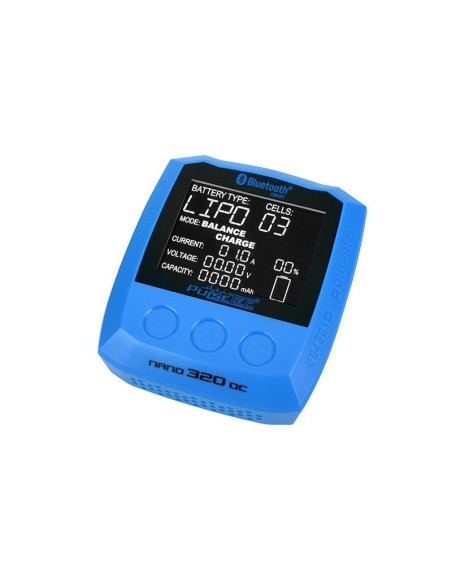

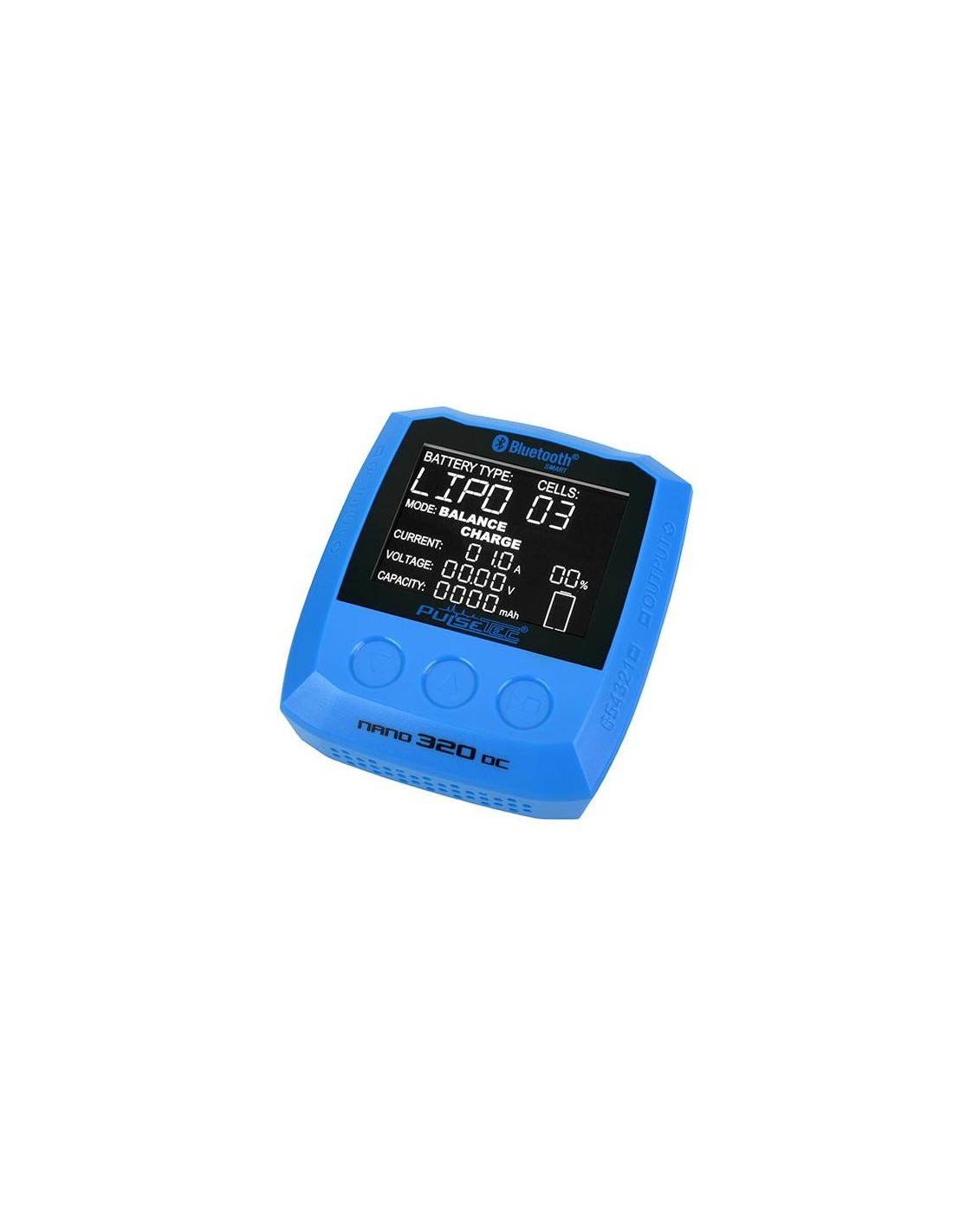

The NANO 320 DC features a clear black display, and touch-sensitive buttons contribute to a better overall experience in terms of visualization, ease of use and portability.
The NANO 320 DC features Bluetooth 4.0 connectivity, enabling remote control and monitoring of the NANO 320 DC via the PULSETEC LINK app on any IOS or ANDROID handheld device, such as a smartphone, iPad or iPhone.
Use wireless technology to load new firmware via the app and your phone. You're always sure to have the latest updates for your NANO 320 DC charger.
Features:
Input voltage: DC 9-32V
Charging circuit power: 320W
Discharge circuit power: 5W
Charging current: 0.1 - 15A
Discharge current: 0.1 - 3A
Balancing port: Max 1.000mA / cell
Peak charge current: 50mA-300mA & Off
Number of LiPo / LiFe / LiIon / LiHV cells: 1-6 S
End-of-charge cell voltage:
LiPo: 4.20V ± 0.02V
LiFe: 3.60V ± 0.02V
LiIon: 4.10V ± 0.02V
LiHV: 4,35V ± 0,02V
Number of NiMH / NiCd cells: 1-15 cells
Battery voltage PB: 2-20V
DC power output: 13.8 V - Max. 100W
Dimensions: 76x85x37mm
Net weight: 130g
User manuals
Français
Deutch
