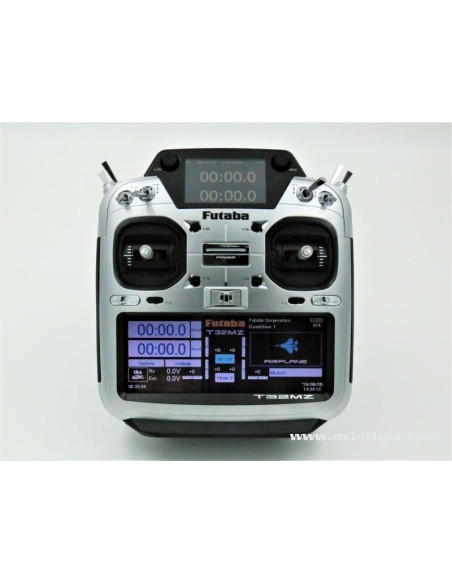

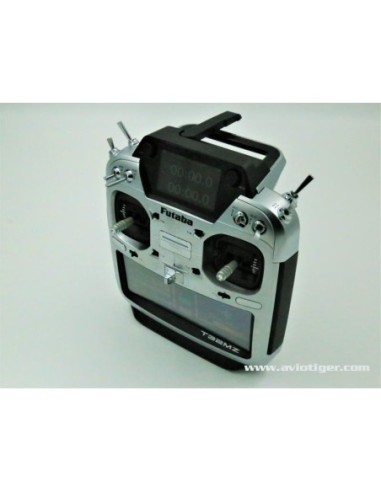

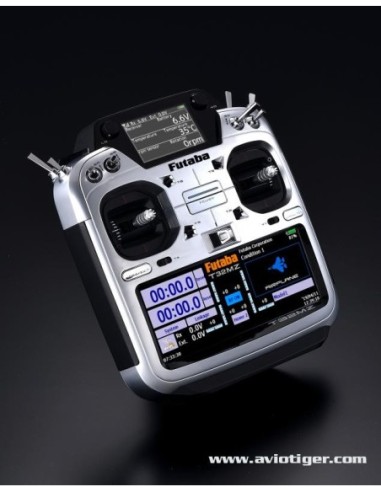

New top-of-the-range FUTABA radio for experienced competitors and modellers.
The 32MZ transmitter has adopted the "FASSTest" two-way communication system.
Receiver data can be checked in your transmitter using telemetry.
The FASSTest is a dedicated 2.4 GHz system with a maximum of 18 channels (linear 16 channels + 2-channel switch).
Technical specifications:
CHANNEL EXTENSION (MULTIPROP FUNCTION):
The multiprop function can be used with the MPDX-1 multiprop decoder, sold separately.
The multiprop function divides one channel into eight, thus extending the number of channels.
You can use up to 2 x MPDX-1 and expand up to 32 channels as follows:
- Linear channel - 14 channels (2 channels are used by the multiprop function)
- ON / OFF channel - 2 channels
- Multiprop channel - 16 channels
Multiprop channels have the following differences from normal linear channels.
The resolution of the multiprop channel is lower than that of the linear channel.
The simultaneous use of several multiprop channels can reduce the operational response of the multiprop.
Multiprop channels cannot use the mix function.
S.BUS2 SYSTEM:
Using the S.Bus2 system, multiple servos, gyroscopes and telemetry sensors are easily installed with a minimum of wiring.
WINDOWS INTEGEDD COMPACT 7:
The T32MZ uses the world-renowned Microsoft Windows Embedded Compact 7, offering exceptional reliability and valuable resources.

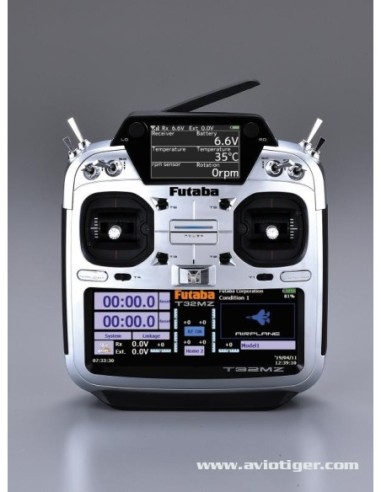

MAIN LCD DISPLAY:
The T32MZ features a backlit color HVGA (640 x 240 pixels) LCD touchscreen. The screen is manufactured with a transflective construction that allows visibility both indoors and outdoors. COLOR LCD DISPLAY:
The T32MZ features a color LCD display. It will be possible to view telemetry information separately from the main display. The sub-display uses a reflective LCD screen offering good visibility, even outdoors. MUSIC PLAY:
The T32MZ can play WMA (Windows Media Audio) files on a microSD card. You can listen to music using the internal speaker or stereo headphones via the headphone jack. An inter can be assigned to start/stop your music.
VOICE RECORDING:
You can record your own voice using the internal microphone, then play back the commands assigned to certain inters. Recording time is up to 3 seconds, and 24 voice files can be recorded.
Secure data (SD card):
Model data, music files, voice files and image files can be stored on an optional microSD card. The microSD card is also used when updating the T32MZ software / features. HIGH CAPACITY LITHIUM POLYMER BATTERY (6600 MAH):
The high-capacity Lithium Polymer battery allows you to extend your flying time.
EDITING:
The touchscreen and two input keys let you edit your model in the easiest way for you.
FUNCTIONS:
Dual internal processors exploit the 32MZ's many functions and optimize response time. Most of the mixing functions are managed by curves that allow very precise adjustments.
HANDLES:
Each axis is supported by two ball bearings. The handles feature non-contact magnetic-sensing potentiometers. This enables finer, more precise operation. In addition, the throttle has an externally-accessible screw adjustment, allowing you to select detent or spring.
REPLACEABLE INTERS:
You can replace 4 of the slide switches at top right and left, with optional switches (two-position, three-position, momentary, etc.).
VIBRATION FUNCTION:
Low voltage and other alarms generate vibration. The alarms or vibrations to be used can be selected by the user.
R7108SB:
This package comes with the R7108SB S.Bus2 dual-antenna diversity receiver for two-way communication.

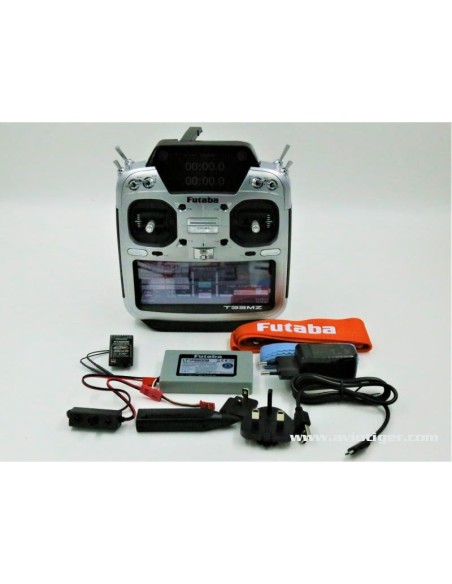

CONTENTS of this T32MZ kit:
-T32MZ transmitter
-R7108SB
-LT1F6600B Lithium-polymer battery and AC adapter
-Switch
-Box of tools (includes special template for adjustment)
-Strap

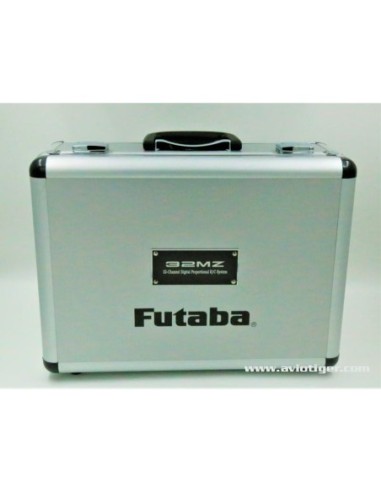

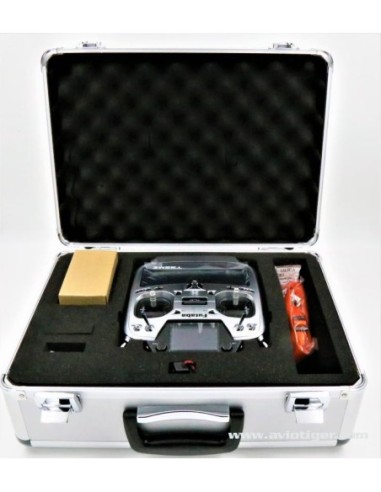

-Aluminium case
-Notice Rapide Française.
TRANSMITTER SPECIFICATIONS:
- 2.4 GHz band
- 2-sleeve, 18-channel, 2.4 GHz FASSTest / FASST / T-FHSS / S-FHSS system
-Lithium-polymer 3.8V L1F6600B power supply
- RF power : 100 mW ERP
- WEIGHT (with battery): 1126 g
R7108SB RECEIVER SPECIFICATIONS:
SIZE: 24.9 mm x 47.3 mm x 14.3 mm
WEIGHT: 12.0 g
Power supply: 3.7 - 8.4 V
