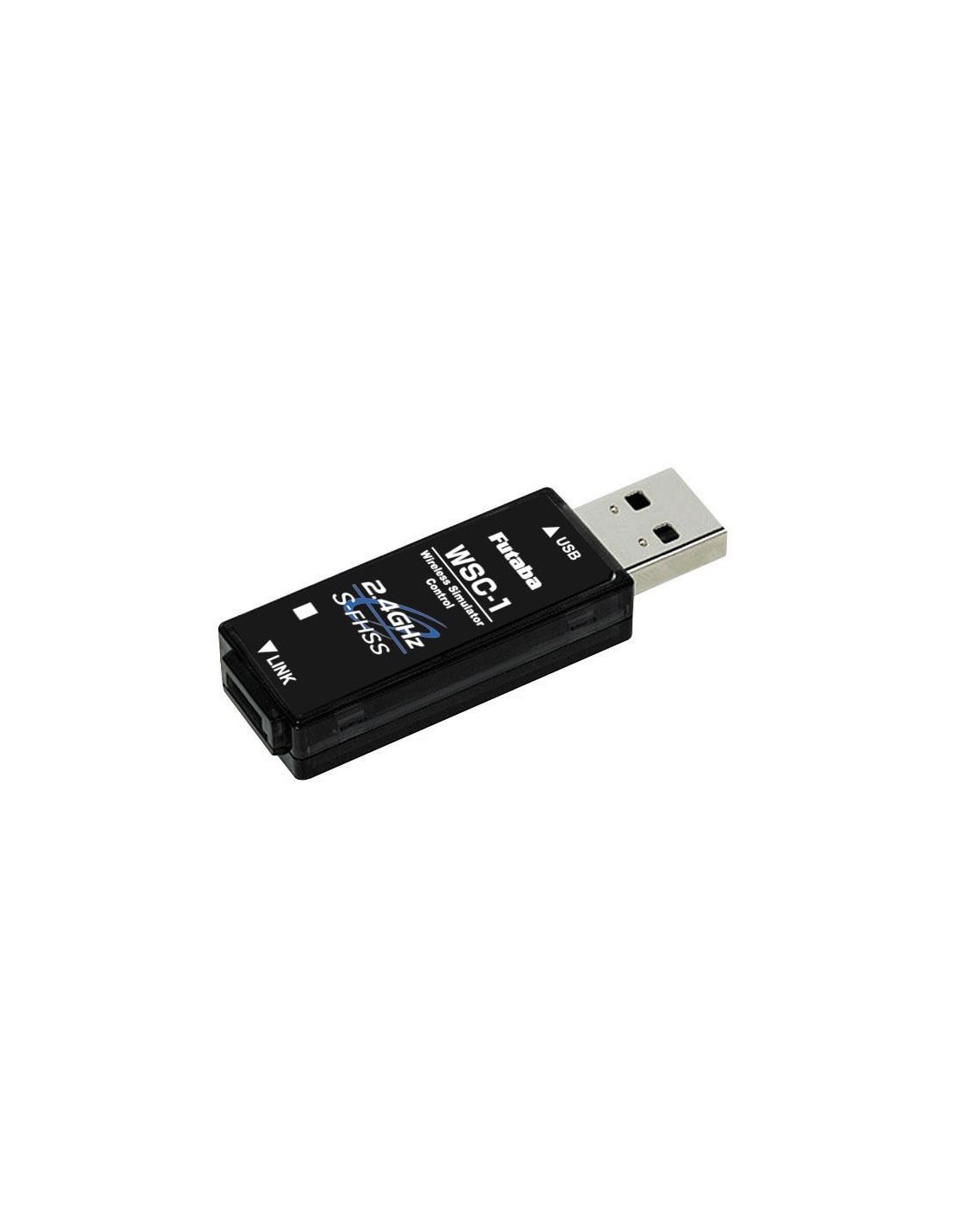

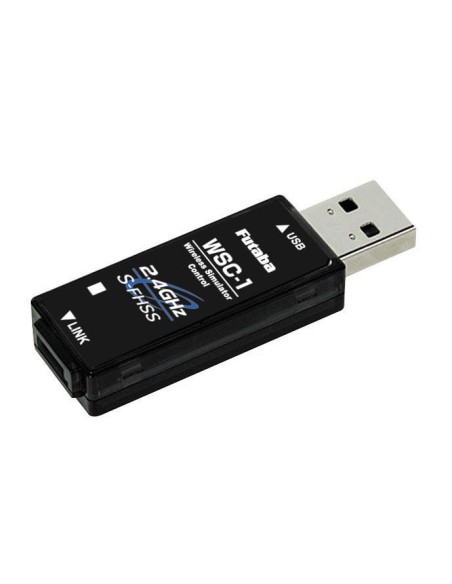

The WSC-1 is a USB interface key that connects your FUTABA transmitter to your computer.
The WSC-1 uses the 2.4 GHz S-FHSS system. It will therefore be necessary to program your transmitter in S-FHSS.
It will then be possible to use it with your Real FlightRF8 / 9 simulator or later version.
Your Futaba transmitter in S-FHSS 2.4 GHz can also be used as a game controller for Windows®.
WSC-1 specifications
(Specifications and dimensions are subject to change without prior notice accompanying technological developments.)
- Applicable operating system: Windows ®10 / 8.1
- USB connector: USB Serial A connector
- Operating voltage: 5.0 V ± 0.2 V (USB bus power supply)
- Current consumption 20mA
- Operating environment: temperature -10 ? + 45 ?
- Dimensions: 18.2 x 56.5 x 9.0 mm
- Weight: 7.6 g
- Maximum operating range: approx. 10 m unobstructed (optimum condition)
* The PC must have a USB port (Type A).
* The "Real Flight" that can use the WSC-1 as a USB interface is RF8 (update required for final version) or later.
Cannot be used with earlier products.
