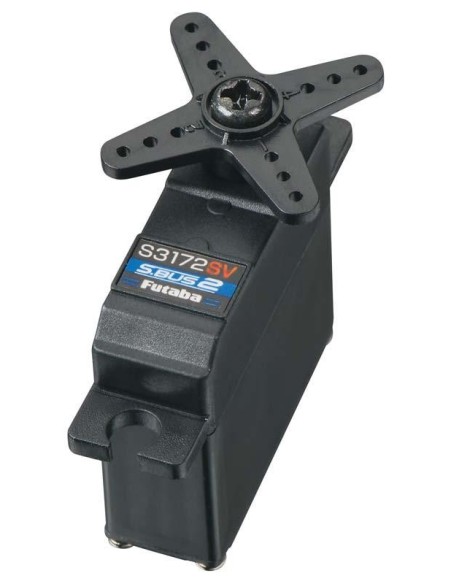

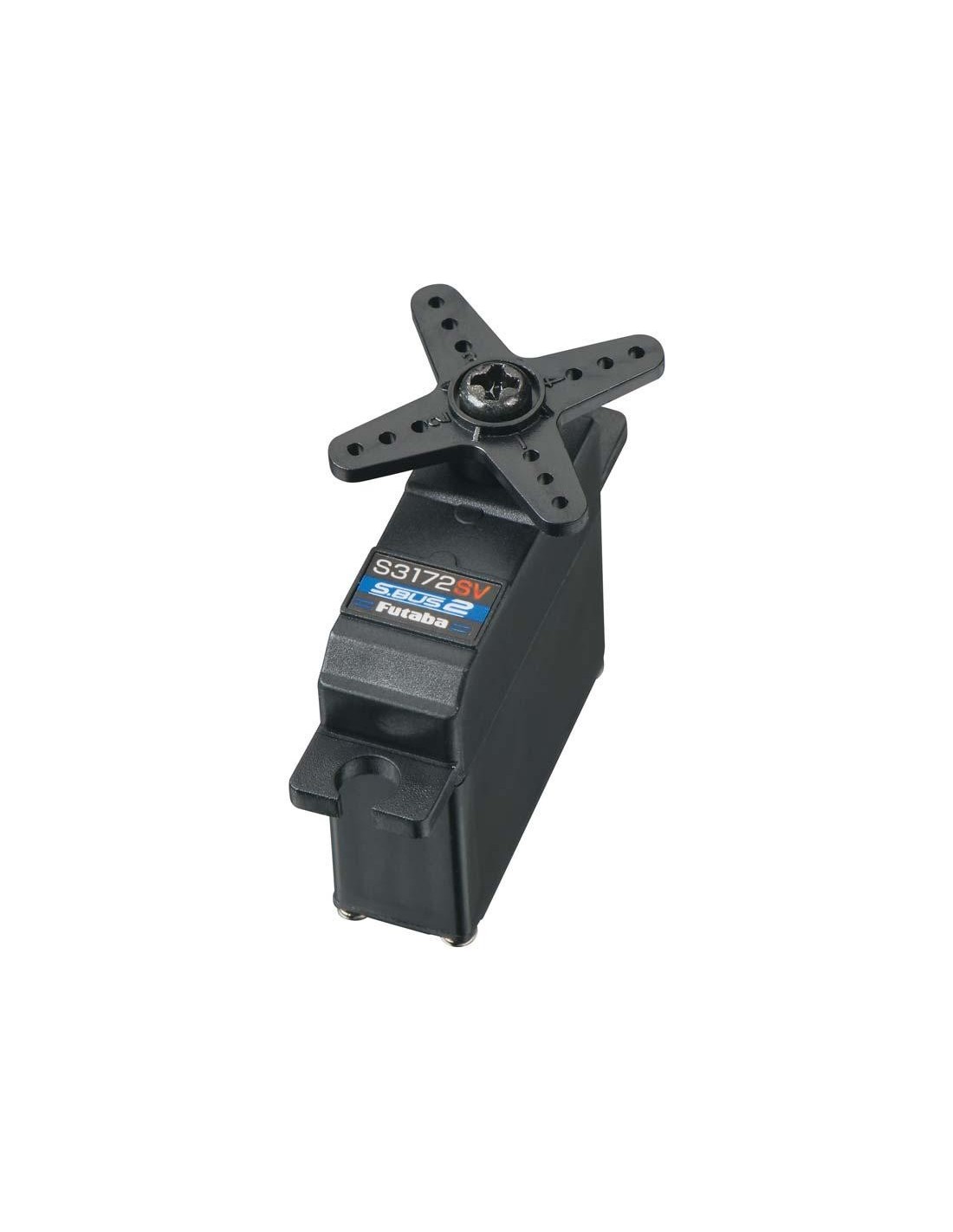

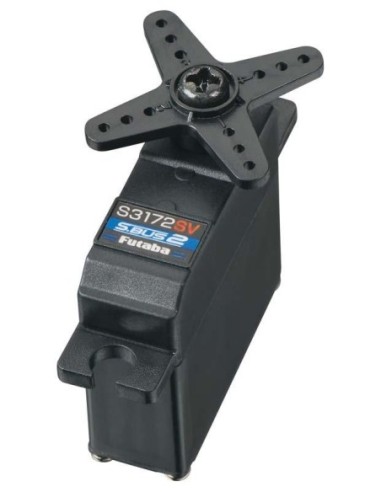

This servo can be connected to the SBUS 2 port of Fasstest receivers or the SBUS port of Fasst and Fasstest receivers, or also to a conventional track.
Programmable functions:
- Direction of rotation, rotation mode (normal or retracted) - Faster or slower start
- Speed of rotation
- Limit switch
- Neutral position
Ideal servo for mini and micro helicopters and aircraft.
Technical specifications:
- Dimensions: 30X10.8X29 mm
- Supply voltage: 6.0 - 7.4V
- Speed: 0.26 sec/60° at 6.6V, 0.23 sec/60° at 7.4V
- Torque: 3.7Kg.cm at 6.6V, 4.1Kg.cm at 7.4V
- Weight: 20g
- Metal gears
- Double bearing
- Digital SBUS2
- Programmable
