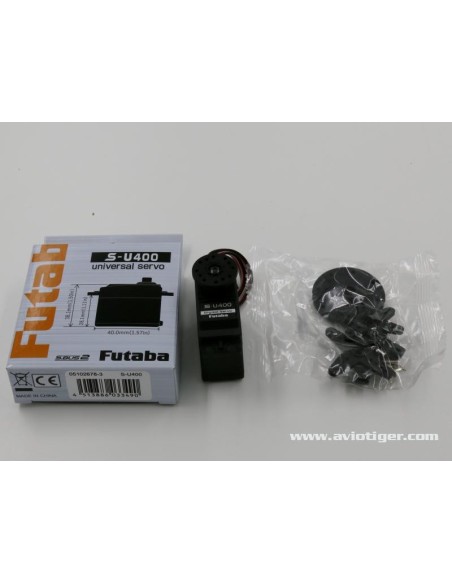

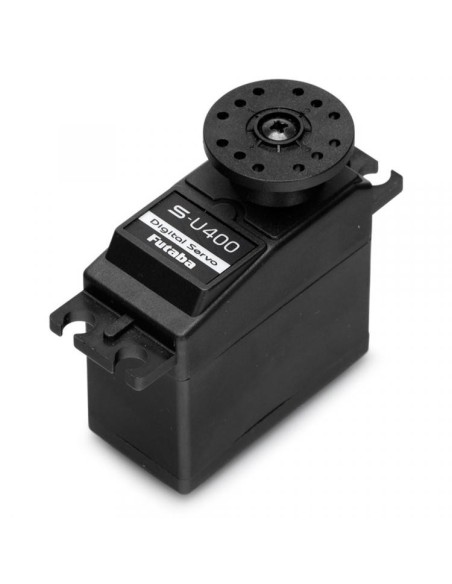

The Futaba S-U400 servo is a new digital standard servo. It is programmable using a computer and a CIU2 or CIU3 box. This servo is SBUS compatible.
Specifications:
Dimensions:40.0x28.1x38.1 mm
Weight: 39g
Gears: Nylon
Speed at 6.6V: 0.14 s/60°
Speed at 7.4V: 0.13 s/60°
Torque at 6.6V: 7.100 kg/cm
Torque at 7.4V: 7.9 kg/cm
Technical data:
"Standard" servo
Operating current: 4.0V-8.4V
Max. current: 7.4V
3-pole motor
Plastic gear
S BUS2 compatible
Replaces servos S3010, S3152 & S3072HV
