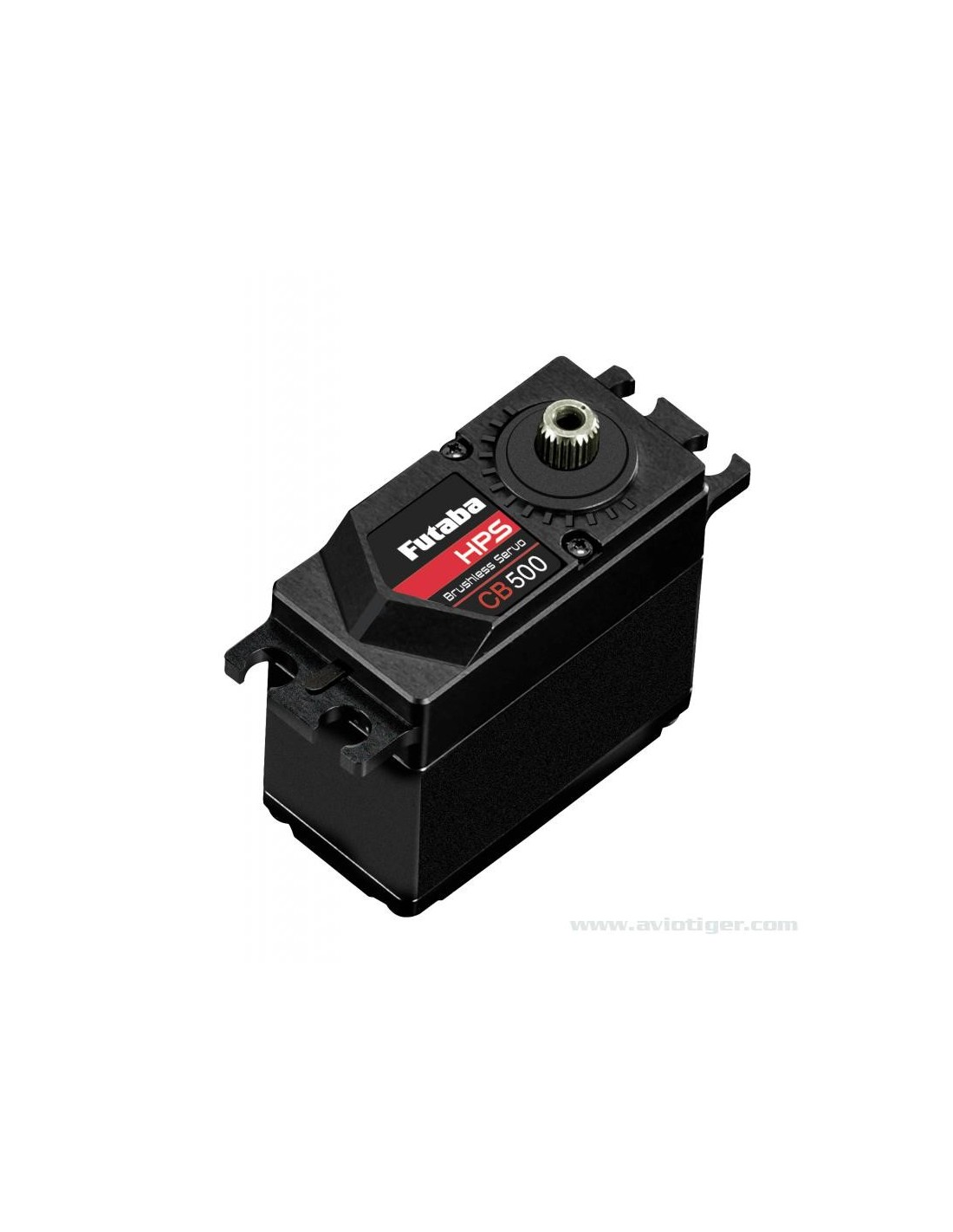

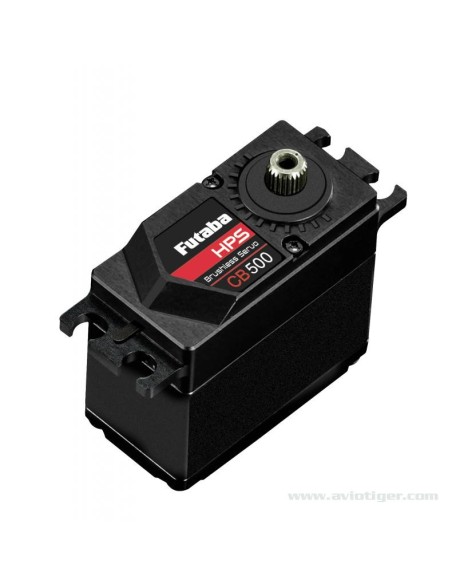

This new Futaba servo is specially designed for 1/8 cars or boats.
Technical specifications:
- High-performance HPS digital servo S.BUS2
- Plastic housing
- Metal gearing
- Brushless HPS motor technology
- T-FHSS SR (Super Response) compatible
- High voltage
- Ball bearings (x2)
- Low-wear potentiometer
- High resolution
- High feedback accuracy
With the new HPS technology, energy consumption is reduced over the entire operating time. Like all S.BUS2 servos, the HPS-CB500 can be connected to all conventional PWM-modulated receivers, and can be optimally adapted to the respective application conditions by programming.
The servo is fully compatible with the SR ("Super Response": fastest signal transmission) mode of the T7XC, T7PX and T4PM.
This servo can be programmed in various ways:
1. With the handy SBC-1 programmer
2. On the PC with the CIU-3 USB adapter
3. On the transmitter's S.BUS connection
The following parameters can be set:
- S. BUS channel assignmentBUS channels
- Servo rotation direction
- Soft start (on / off)
- Mode selection in case of Hold or Free signal failure
- Soft servo operation (on / off)
- Servo position (servo tester)
- Servo center adjustment +/- 300 µs (approx. 30 degrees)
- Servo speed, 0.39 - 9 seconds per 45 degrees
- Deadband definition (deadband)
- Left and right servo travel adjustment separately, approx. 50 to 175%
- Starting power
- Damping
- Holding power
Features:
Dimensions :40.5 x 21.0 x 34.8 mm
Weight: 57 g
Speed at 6V: 0.07s/60°
Speed at 6.6V: 0.07s/60°
Speed at 7.4V: 0.06s/60°
Torque at 6V: 20.6kg/cm
Torque at 6.6V: 23.3 kg/cm
Torque at 7.4V: 25.5 kg/cm
Use: scale kit 1/10 1/8, do not use on scale 1/5
