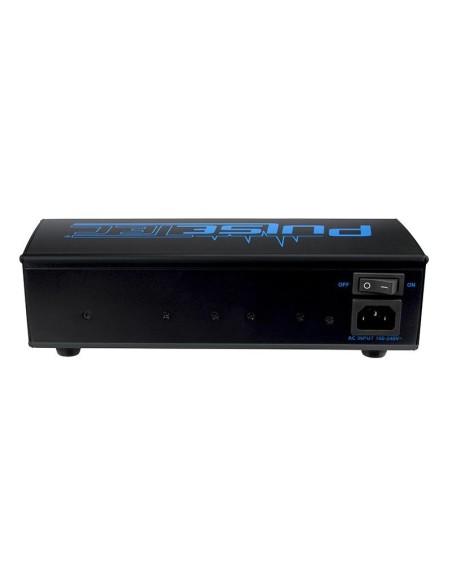

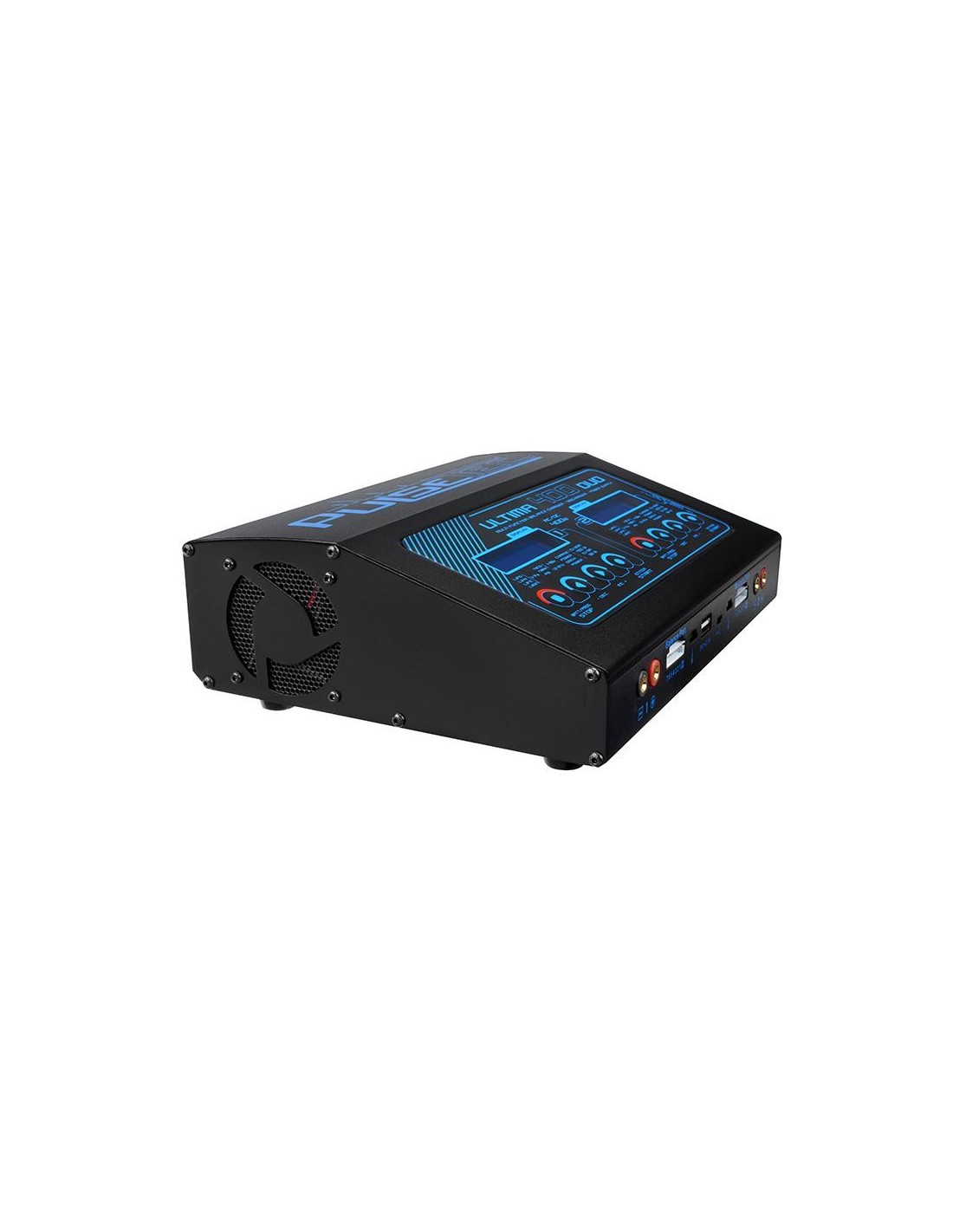

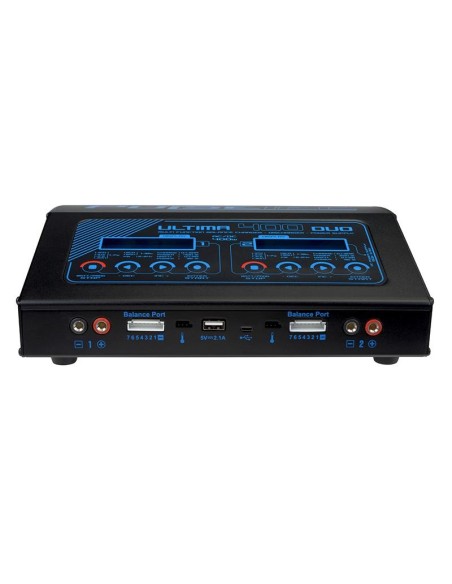

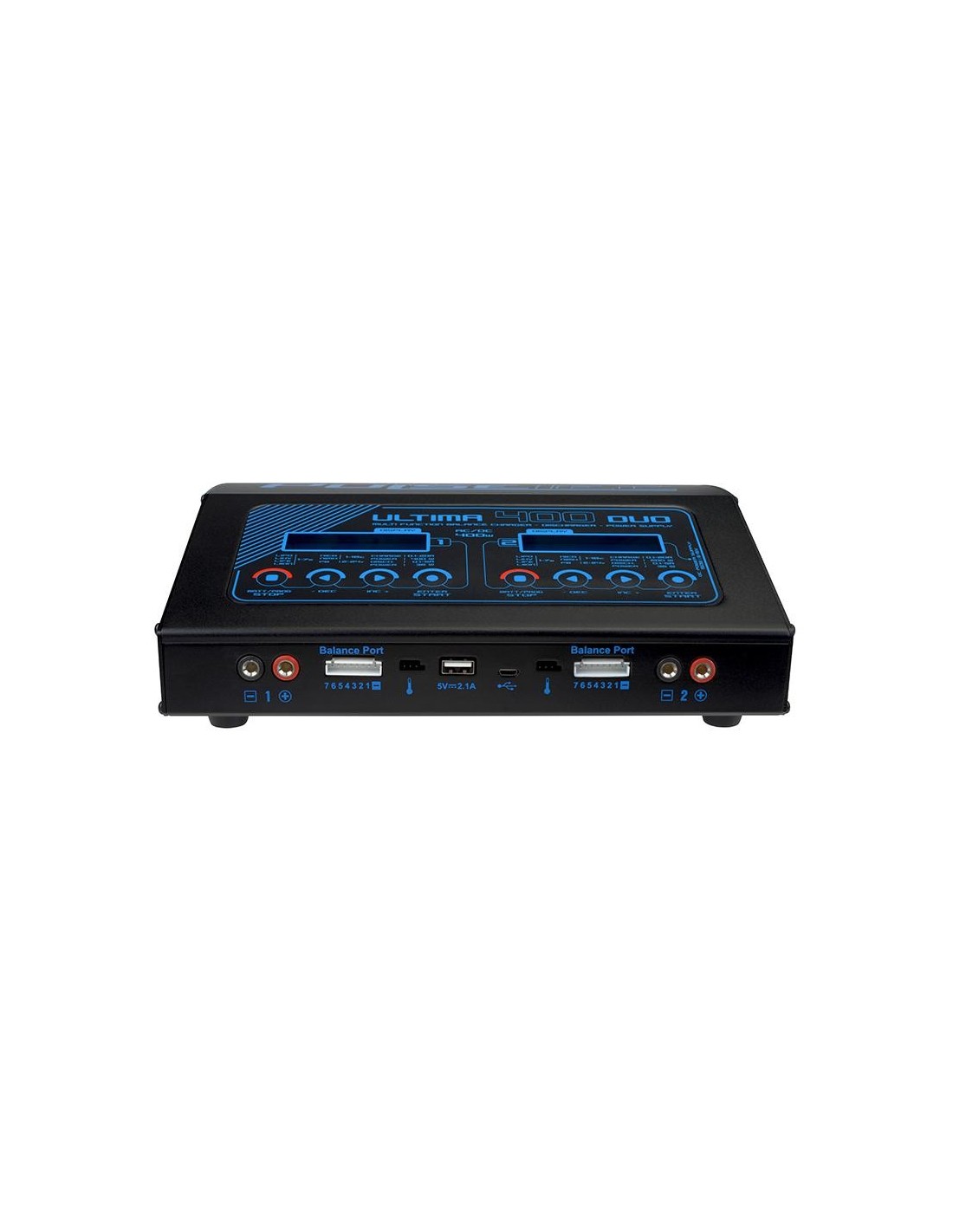

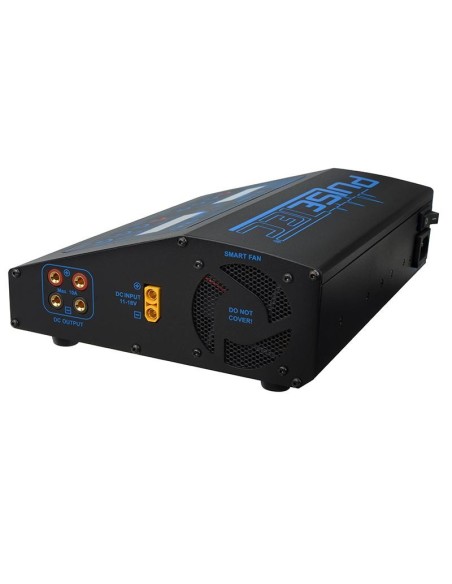

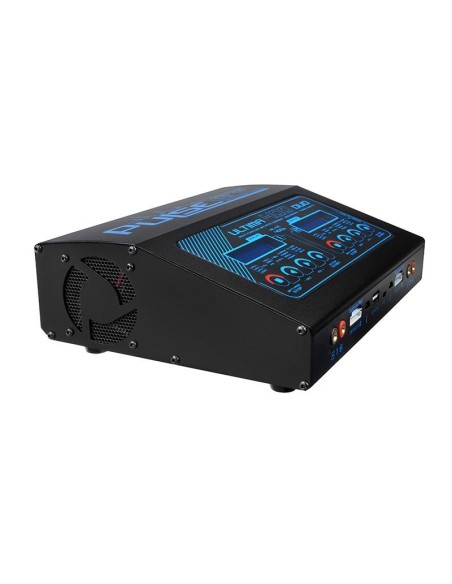

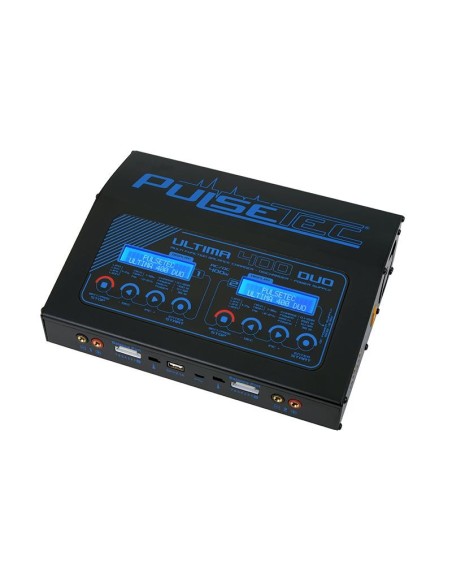

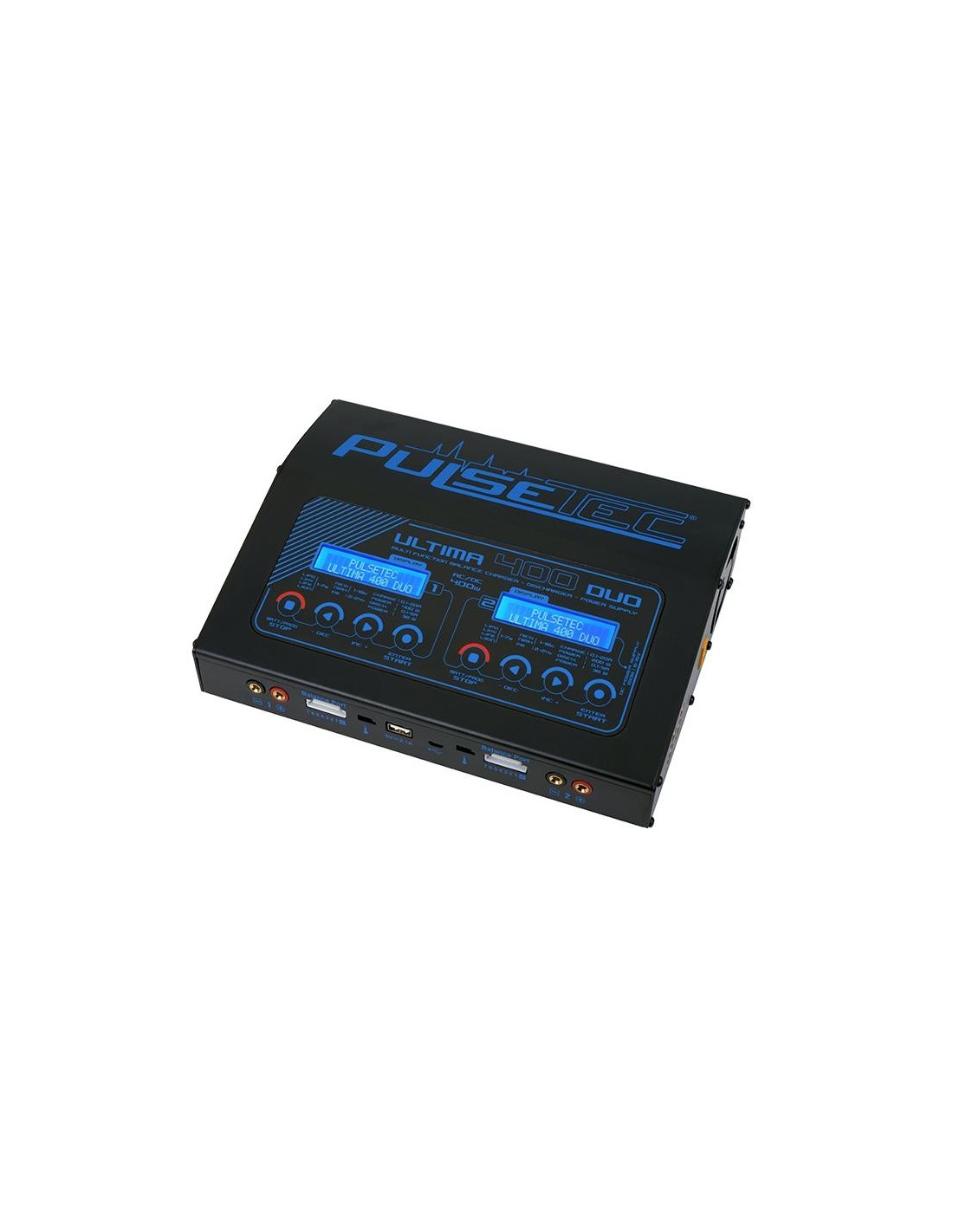

ULTIMA 400 QUAD CHARGER

The ULTIMA 400 DUO AC / DC is a dual-output charger with two independent circuits capable of simultaneously charging all types of LiFe, LiIon, LiPo, LiHV, NiMH, NiCd and PB batteries.
L\ ULTIMA 400 DUO can charge 2 lithium batteries from 1 to 7 cells, nickel batteries from 1 to 18 cells or PB batteries from 2 to 24 V.
Charging current is adjustable from 0.1 to 20.0 A, with a maximum total charging power of 400 W on output 1 or 2X200 W. The ULTIMA 400 DUO is packed with incredible features. Ultra-bright LCD displays, charge/discharge functions, adjustable 6-15VDC 150W power supply, IR battery meter and much more.
The ULTIMA 400 DUO can be connected to a PC to update the firmware, or use the PULSETEC CHARGEMASTER software to monitor the charger during charging.

Specifications:

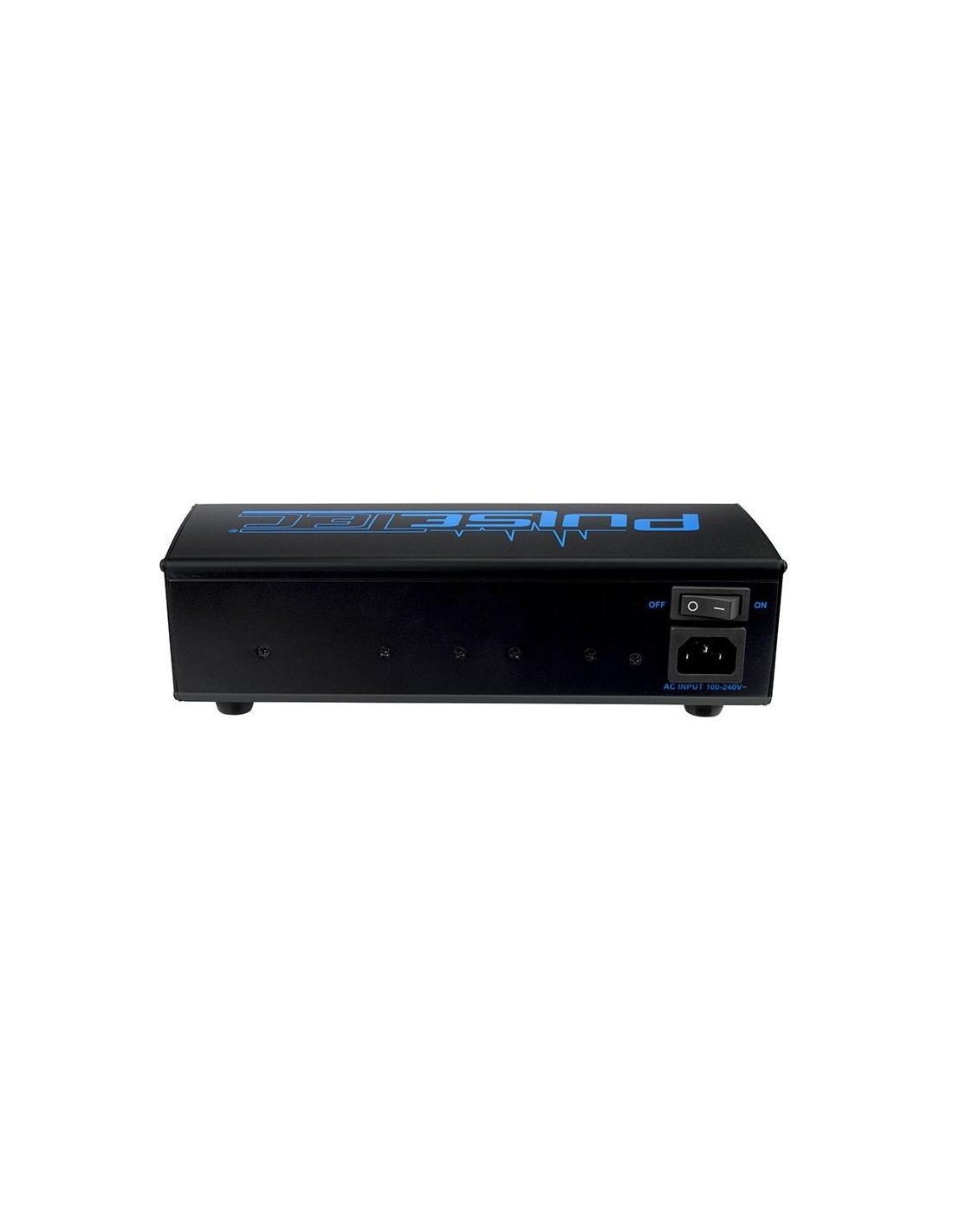

Input voltage: AC 100-240V / DC 11-18V
Charging circuit power: 400W
Discharge circuit power: 2x 36W
Charging current: 2x 0.1 - 20A
Discharge current: 2x 0.1 - 5A
Balancing port: Max 500mA / cell
Charging current: 50mA-300mA & Off
Number of LiPo / LiFe / LiIon / LiHV cells: 2x 1-7 S
Cell voltage end of charge:
LiPo: 4.20V ± 0.02V
LiFe: 3.60V ± 0.02V
LiIon: 4.10V ± 0.02V
LiHV: 4,35V ± 0,02V
Number of NiMH / NiCd cells: 1-18 cells
Battery voltage PB: 2x 2-24V

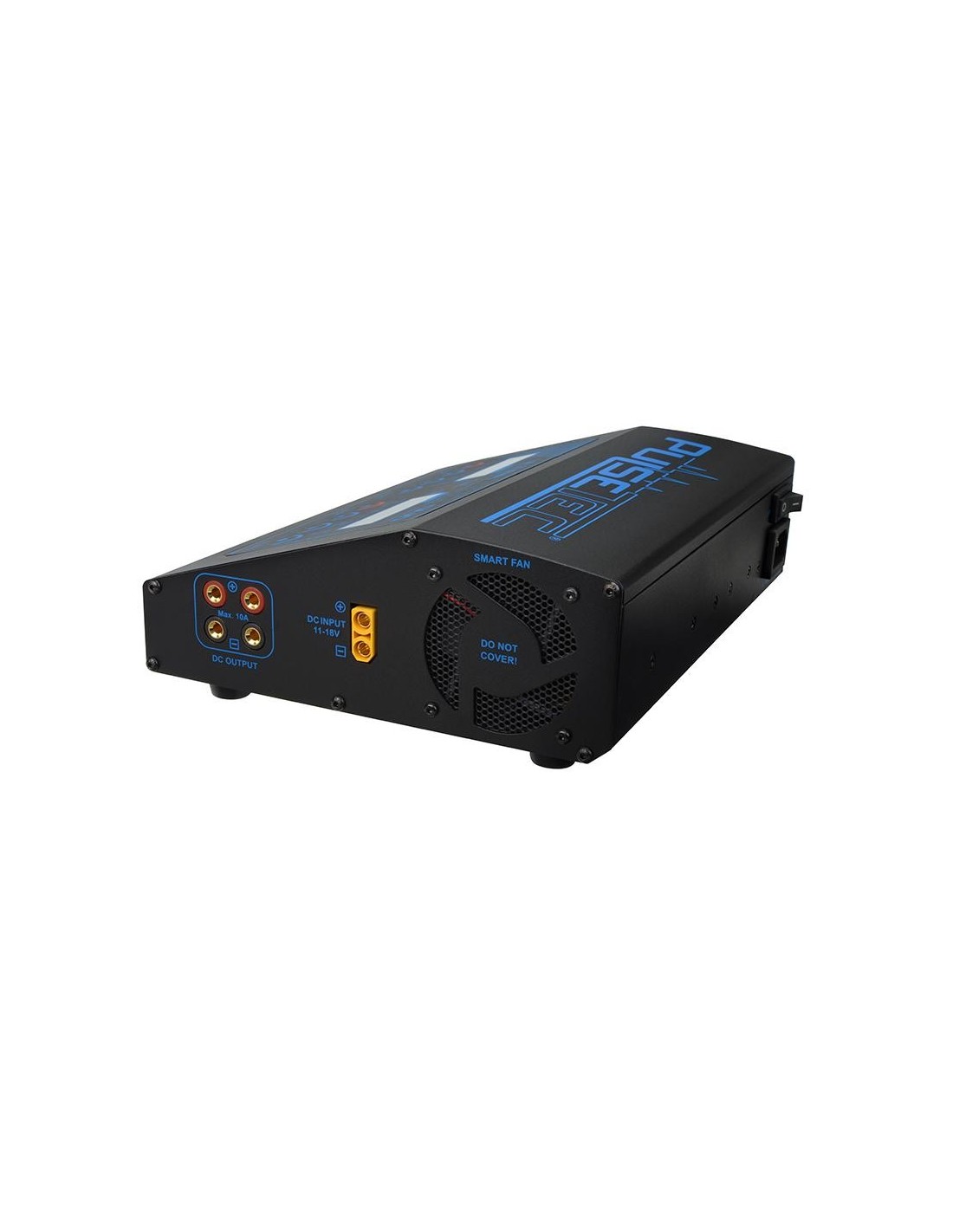

DC power supply: 6-15V - Max. 10A / 150W
USB output: 5V - 2.1A
Dimensions: 258x194x82mm
Net weight: 2.510g
