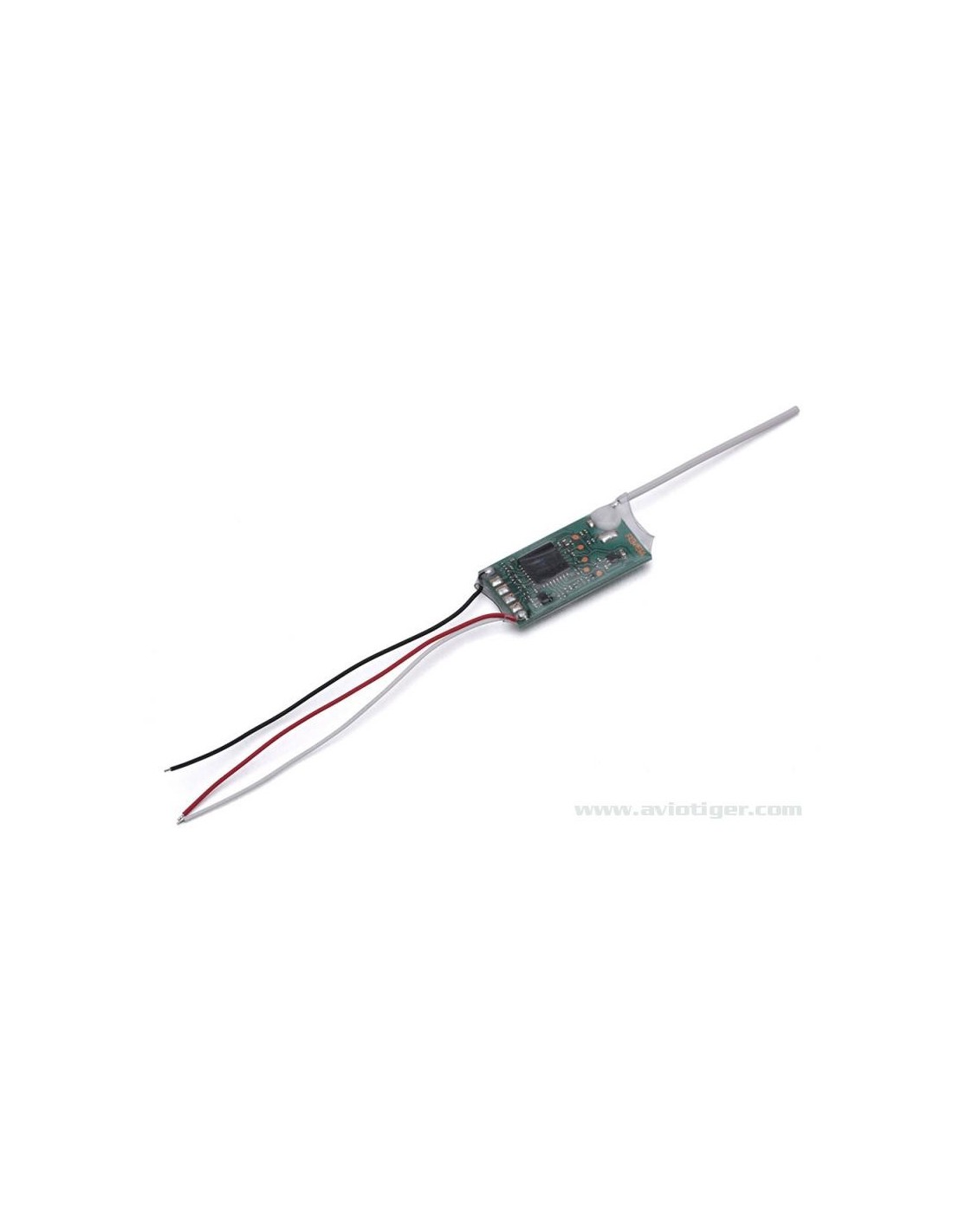

R3206SBM 2.4GHZ T-FHSS RECEIVER

The Futaba R3206SBM is an extremely compact and lightweight 2.4 GHz T-FHSS receiver. Weighing less than 1g, it is ideal for very small, very light aircraft models and very small multicopters.
In theory, up to 18 programmable servos or S.BUS peripherals can be connected.
Thanks to digital addressing, each servo responds only to information including the correct servo address.
6 PWM channels are available as soldering pads.

Features:
- S.BUS output
- Hi-Voltage or LiPo cell operation
- Solder connections
- Approx. 100 m range

Technical data
- Frequency band: 2.4 GHz
- Transmission system: T-FHSS AIR
- Range: approx. 100 m
- Number of channels: 6 PWM / 18 S.BUS - S.BUS output: S.BUS
- Voltage range: 3.2 - 8.4 V
- Dimensions: 20.0 x 10.0 x 3.0 mm
- Weight: approx. 1 g
