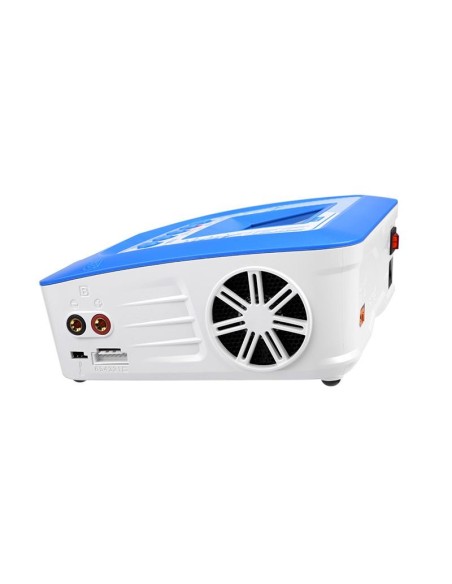

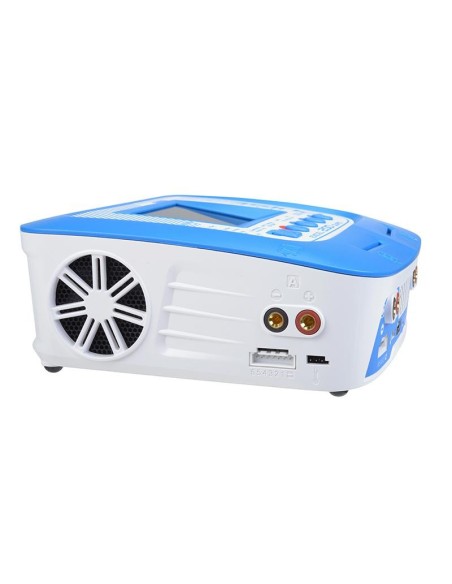

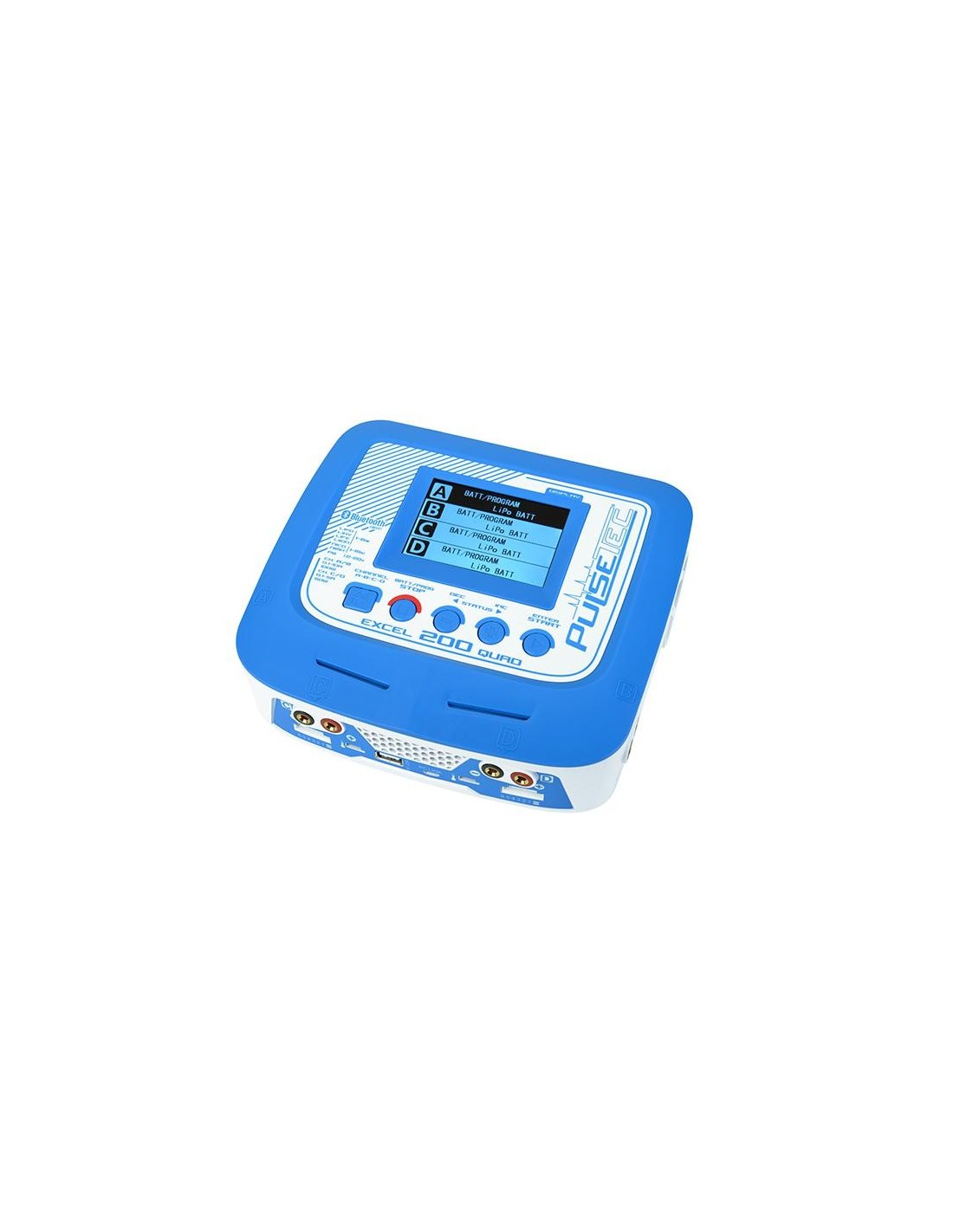

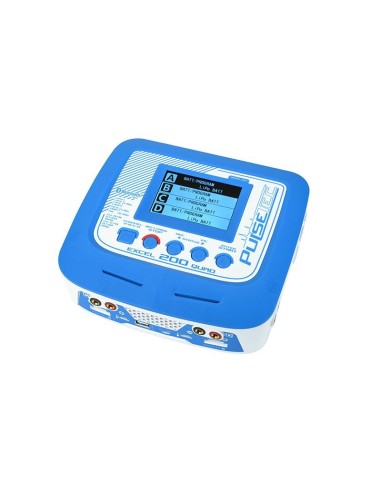

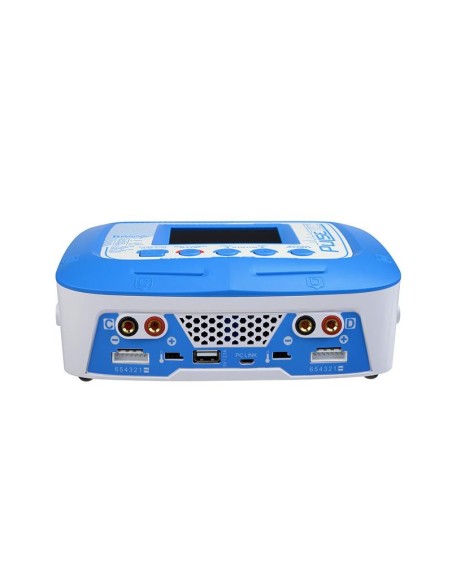

The EXCEL 200 QUAD AC / DC charger is a four-output charger with four independent circuits capable of simultaneously charging all types of LiFe, LiIon, LiPo, LiHV, NiHH, NiCd and PB batteries.
The EXCEL 200 QUAD can charge 4 lithium batteries from 1 to 6 cells, Nimh batteries from 1 to 15 cells or lead-acid batteries from 2 to 20 V simultaneously. Charging current is adjustable from 0.1 to 10.0 A (outputs A + B) with a maximum of 200 W in AC mode or 300 W in DC mode.
The EXCEL 200 QUAD is packed with incredible features unique in its price range. To name but a few: large color LCD display, charge/discharge functions, IR battery meter and much more. The EXCEL 200 QUAD features Bluetooth 4.0 connectivity, enabling remote control and monitoring of the EXCEL 200 QUAD via the PULSETEC LINK app on any IOS or ANDROID handheld device, such as a smartphone, iPad or iPhone.
The EXCEL 200 QUAD can be connected to a PC to update the firmware, or use the PULSETEC CHARGEMASTER software to monitor the charger during charging.
Specifications:
Input voltage: AC 100-240V / DC 11-18V
DC charging circuit power: 2x 100W / 2x 50W
AC charging circuit power: 2x 50-100W / 2x 0-50W
Discharge circuit power: 4x 10W
Charging current: 2x 0.1 - 10A / 0.1 - 5A
Discharge current: 4x 0.1 - 2A
Balancing port: 200 mA max. / Cell
Peak charge current: 50mA-300mA & Off
Number of LiPo / LiFe / LiIon / LiHV cells: 4x 1-6 S
Cell voltage end of charge:
LiPo: 4.20V ± 0.02V
LiFe: 3.60V ± 0.02V
LiIon: 4.10V ± 0.02V
LiHV: 4.35V ± 0.02V
Number of NiMH / NiCd cells: 4x 1-15 cells
Battery voltage PB: 4x 2-20V
USB output: 5V - 2.1A
Dimensions: 197x182x71mm
Net weight: 1.335g
User manuals
French
Deutch
