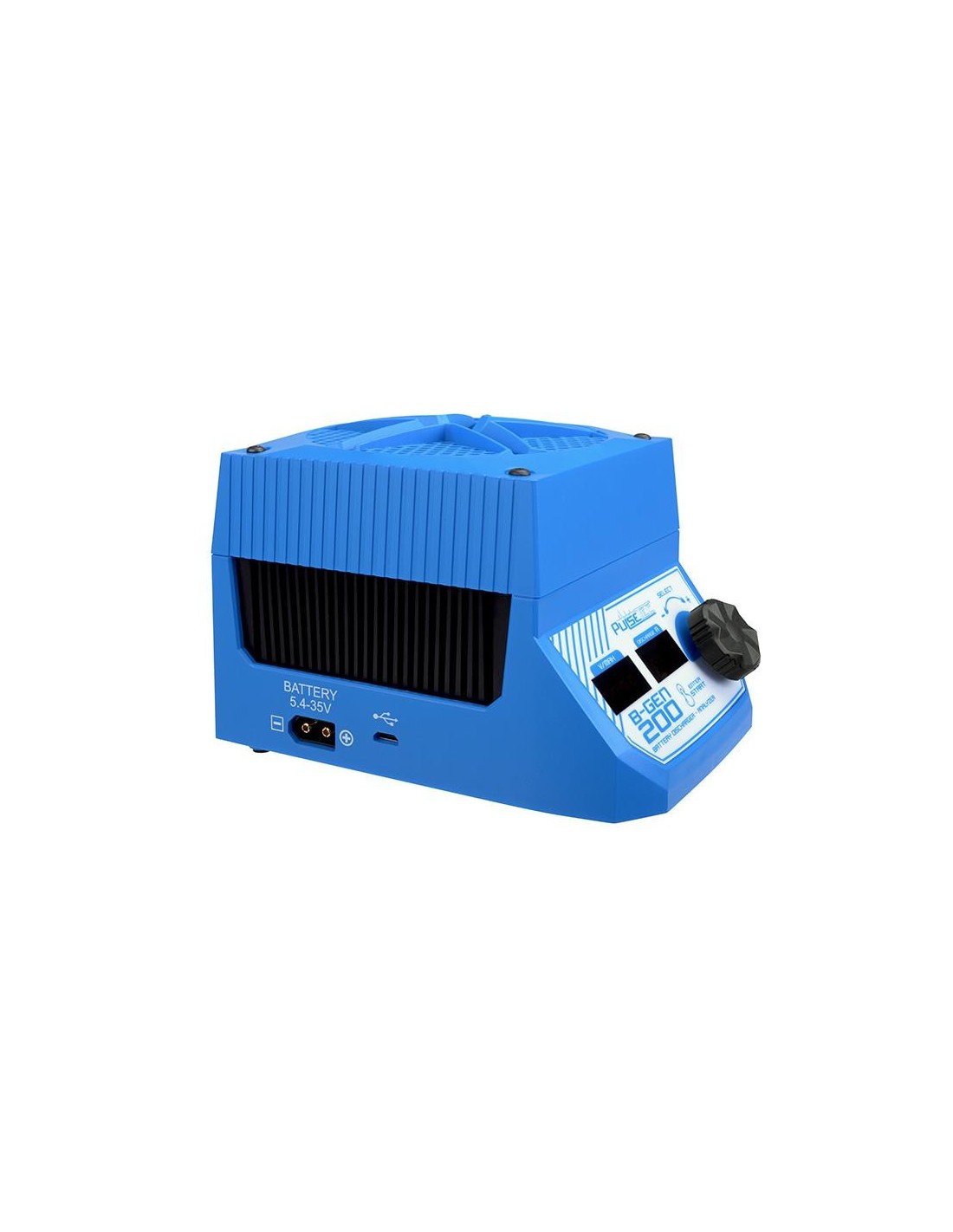

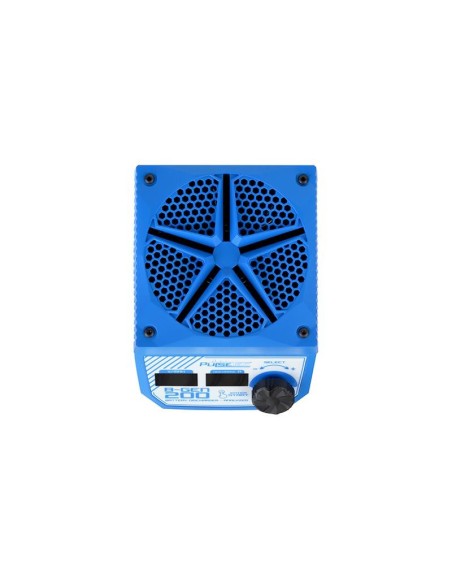

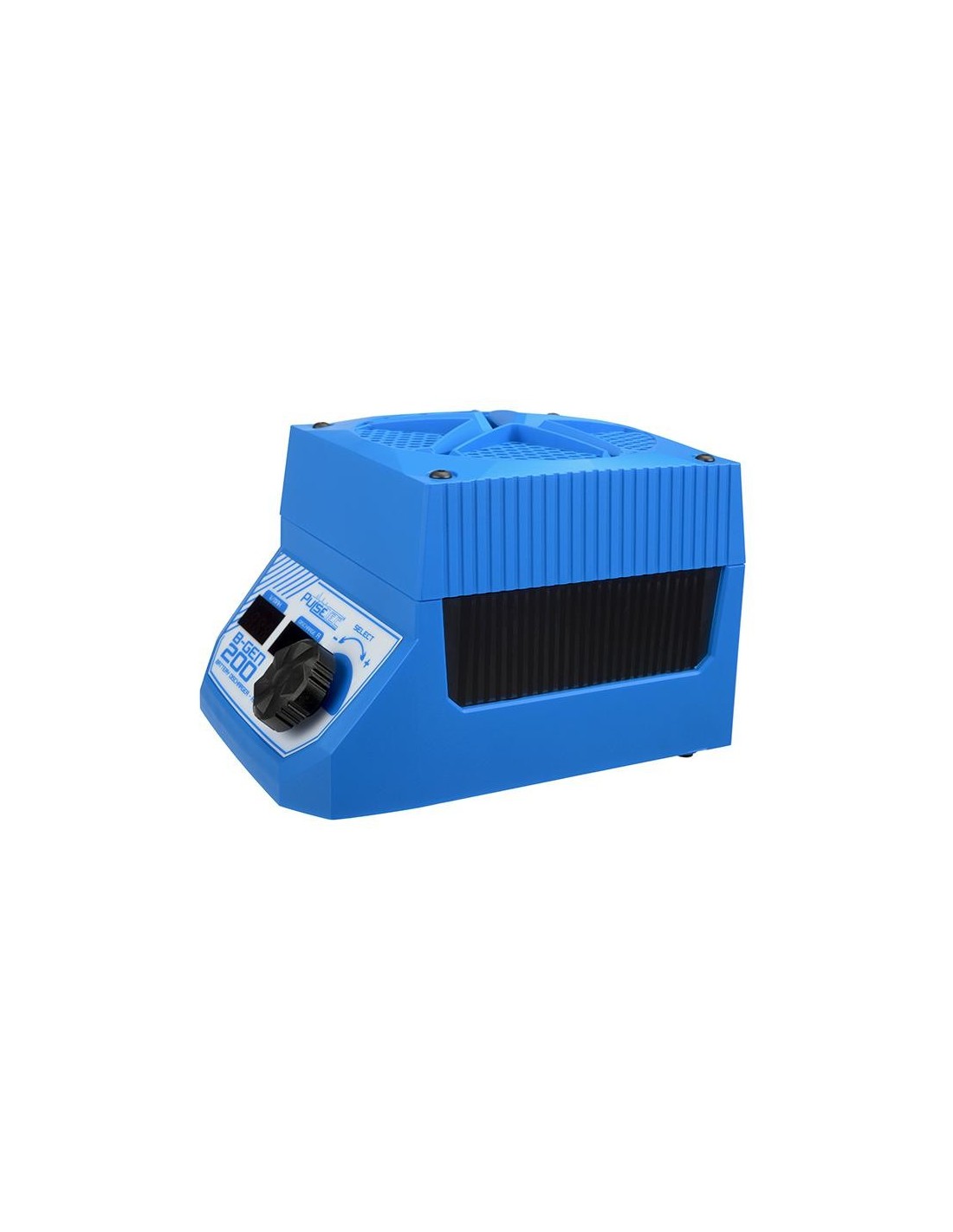

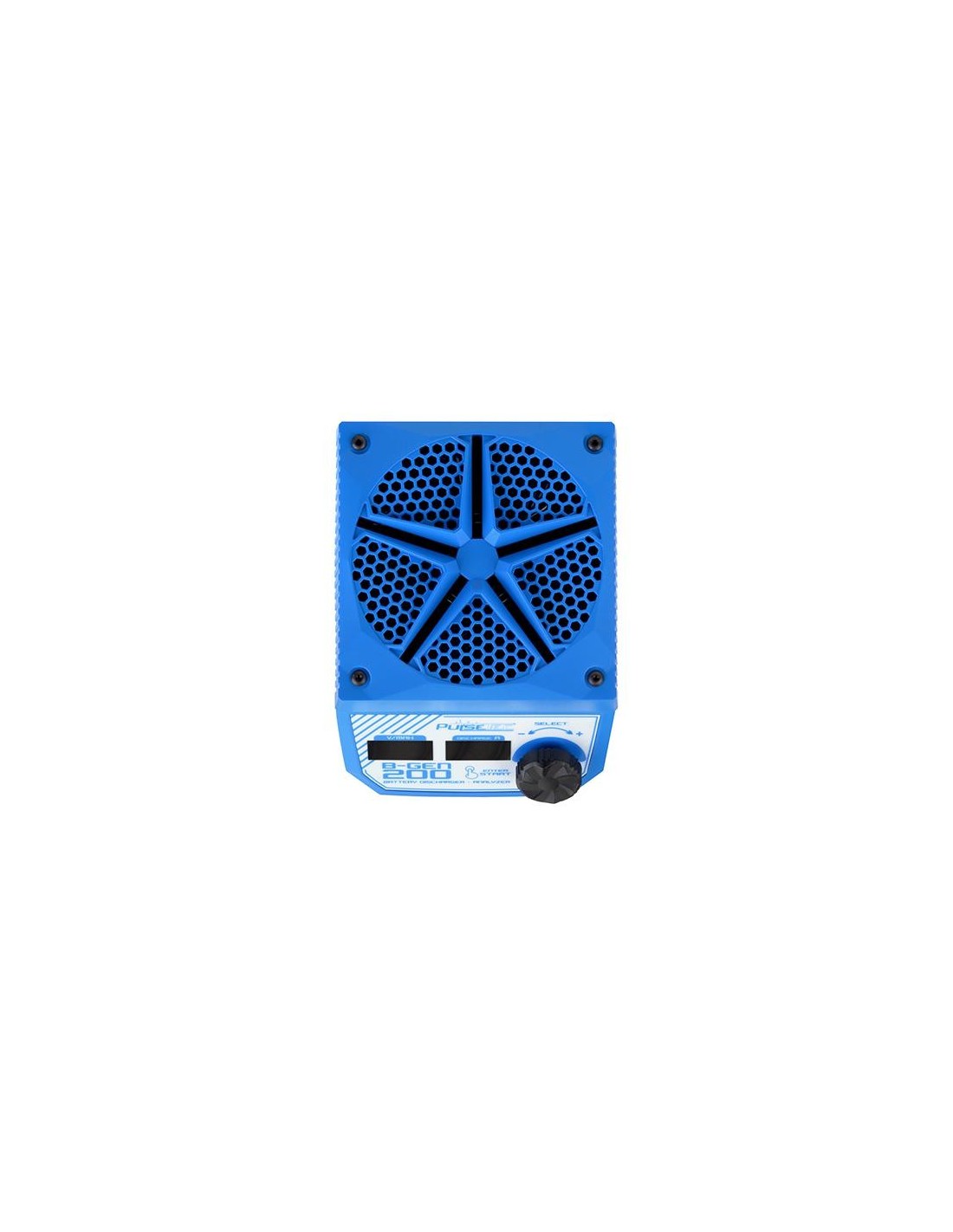

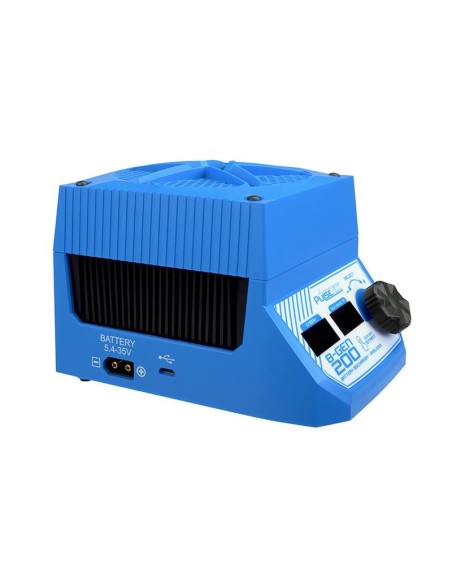

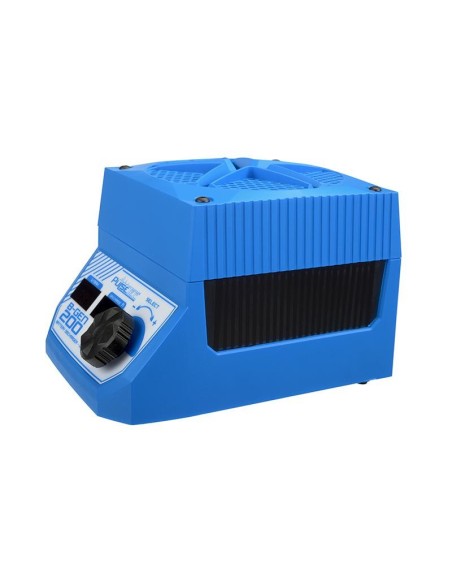

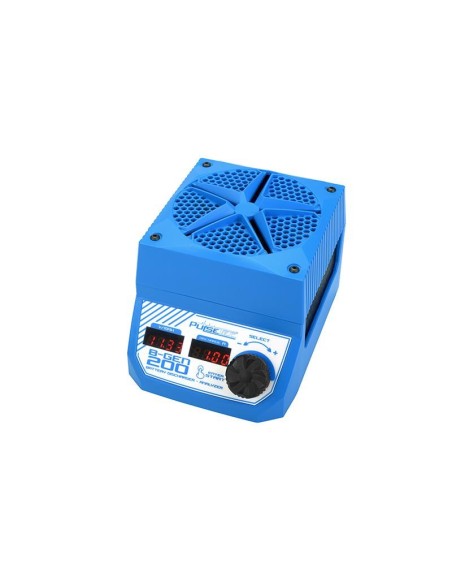

The B-GEN 200 is a powerful discharge device for discharging all types of battery up to 30 amps or 200W maximum.
The B-GEN 200 measures and compares the performance and quality of your batteries.
The B-GEN 200 will accurately measure the capacity of your batteries, so you won't go wrong when choosing the best battery for your application.
The B-GEN 200 is much more than just a battery discharger or charge tester.
The B-GEN 200 can test virtually any type or size of battery, any chemical composition or number of cells, up to 35 volts.
The B-GEN 200 is small in size but big in performance.

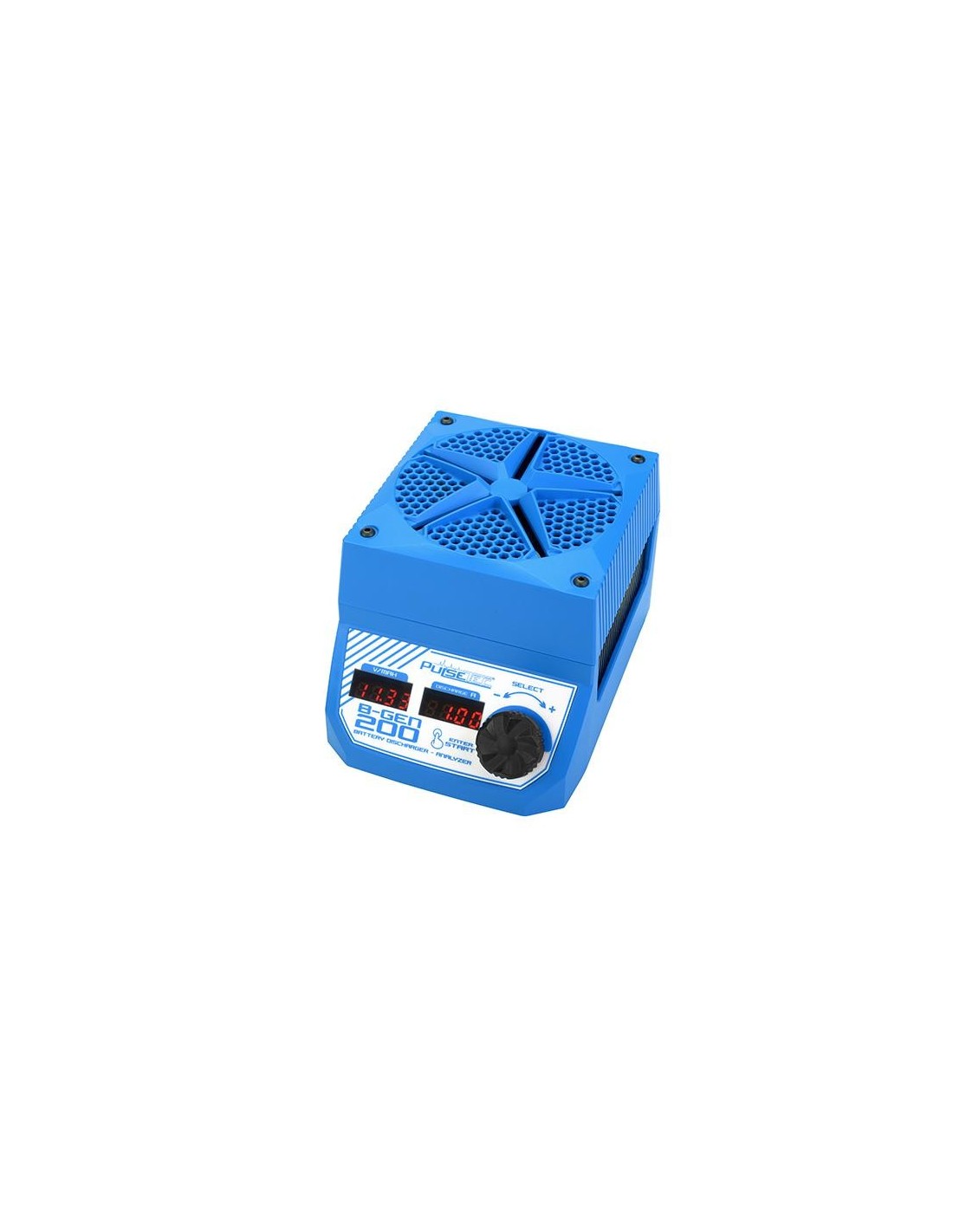

The B-GEN 200 can discharge continuously at full load (200 W), thanks to a high-performance cooling system and the use of high-performance MOSFETs from the well-known IXYS brand. The rotating dial simplifies your operation, and the digital LED displays provide accurate information at all times.
Features:
Discharge voltage: 5.40 - 35.00V
Low Voltage Warning: <5.20V
Max. discharge power .200W
Discharge current: 0.01A - 30.00A
Standby consumption: <100?A
Standby current: ? 35mA
Current accuracy:
0.01-10.00A ± 60mA
10.00 - 30.00A ± 2%
Voltage accuracy:
5.40V - 10.00V ± 60mV
10.00 - 20.00V ± 120mV
20 - 35V ± 160mV
Capacitance accuracy: ± 3%
Dimensions: 136x104x96mm
Net weight: 858g
User manuals
Français
Deutch
