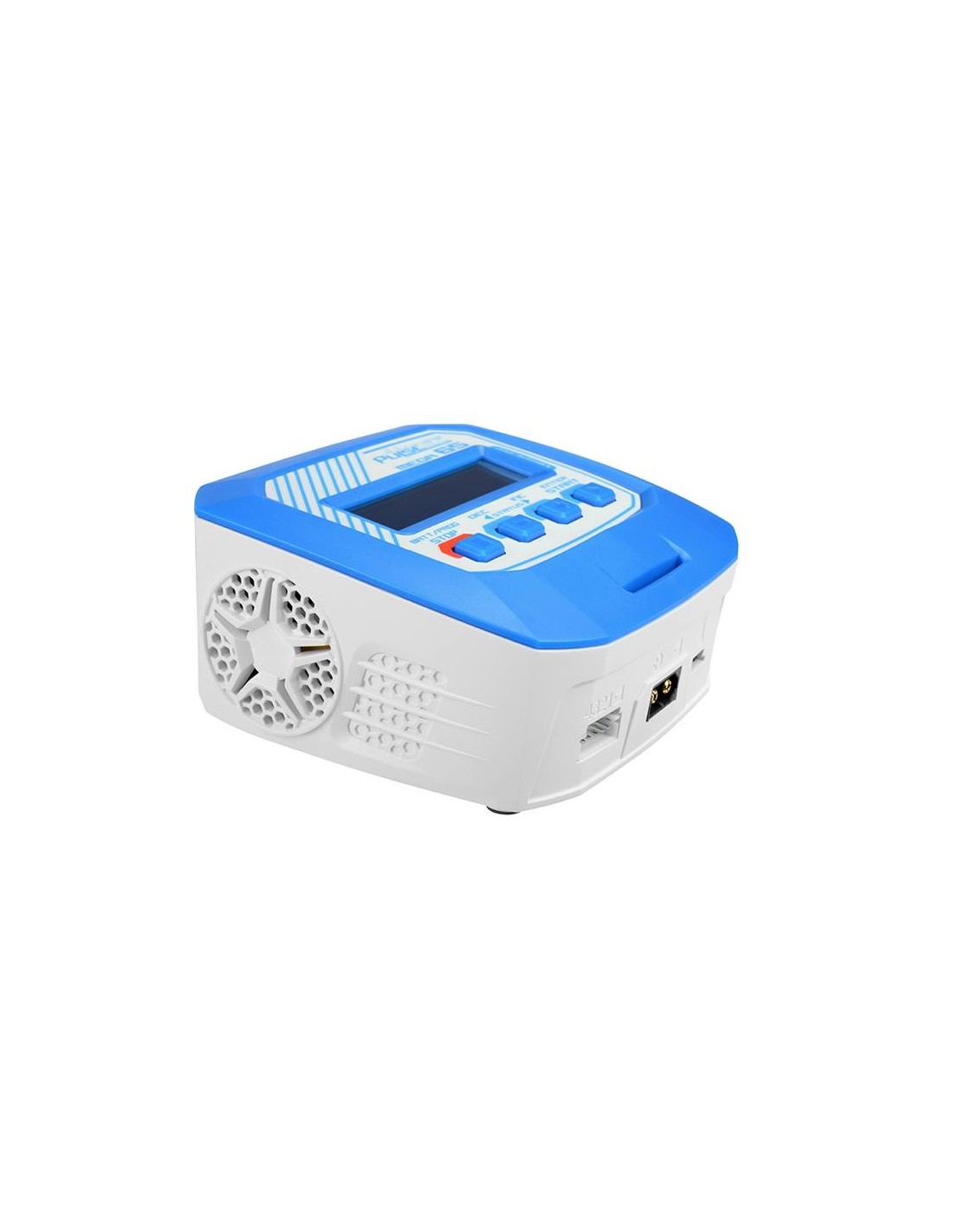

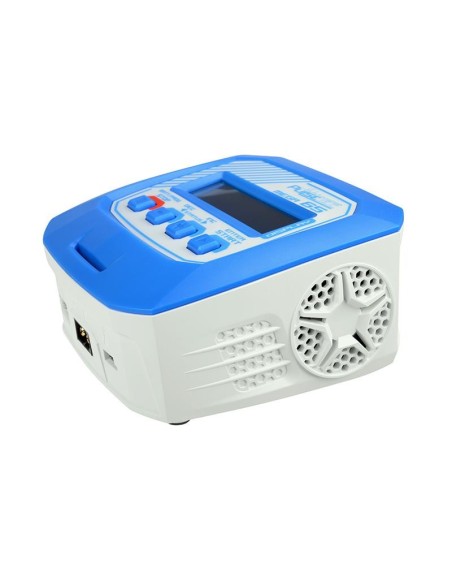

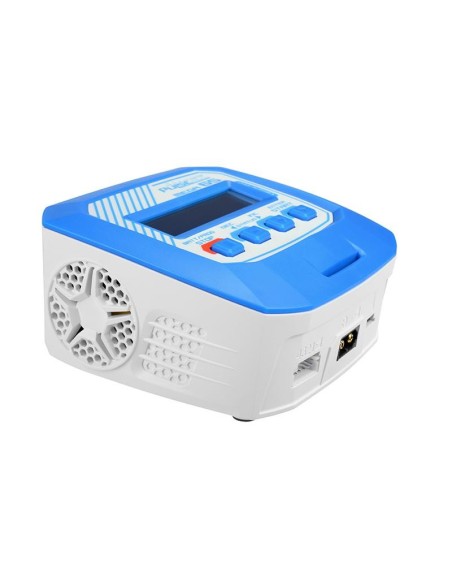

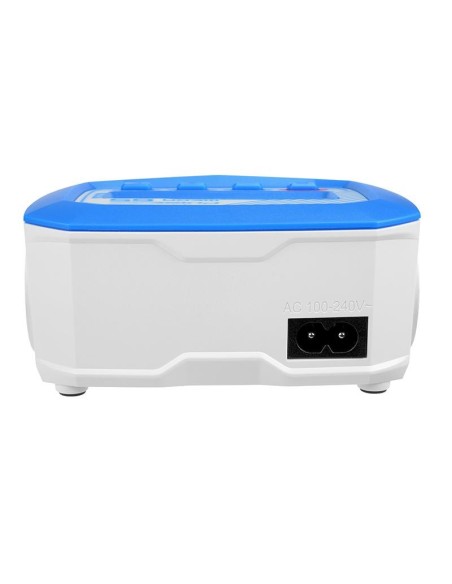

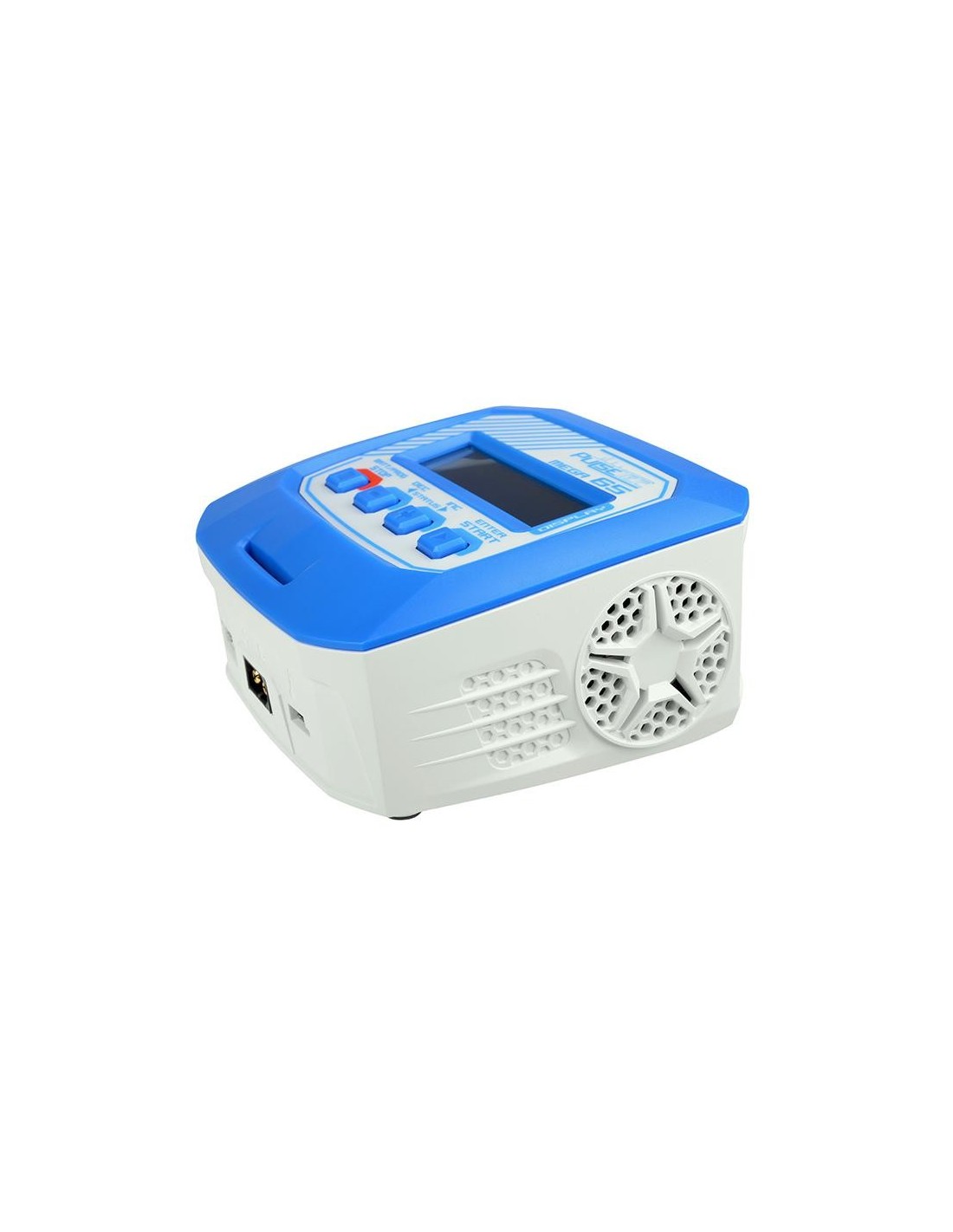

PULSETEC MEGA 65 CHARGER

The MEGA 65 is an affordable, high-end mains charger that can be used to charge lithium batteries from 2S to 4S, NiMH batteries from 6 to 8 cells and lead-acid batteries from 6 to 12V.
Charging current can be selected between 0.1 and 6 A, with a maximum charging power of 65 watts. The MEGA 65 can charge almost any type of battery; LiFe, LiIon, LiPo, LiHV, NiMH, NiCd and PB.

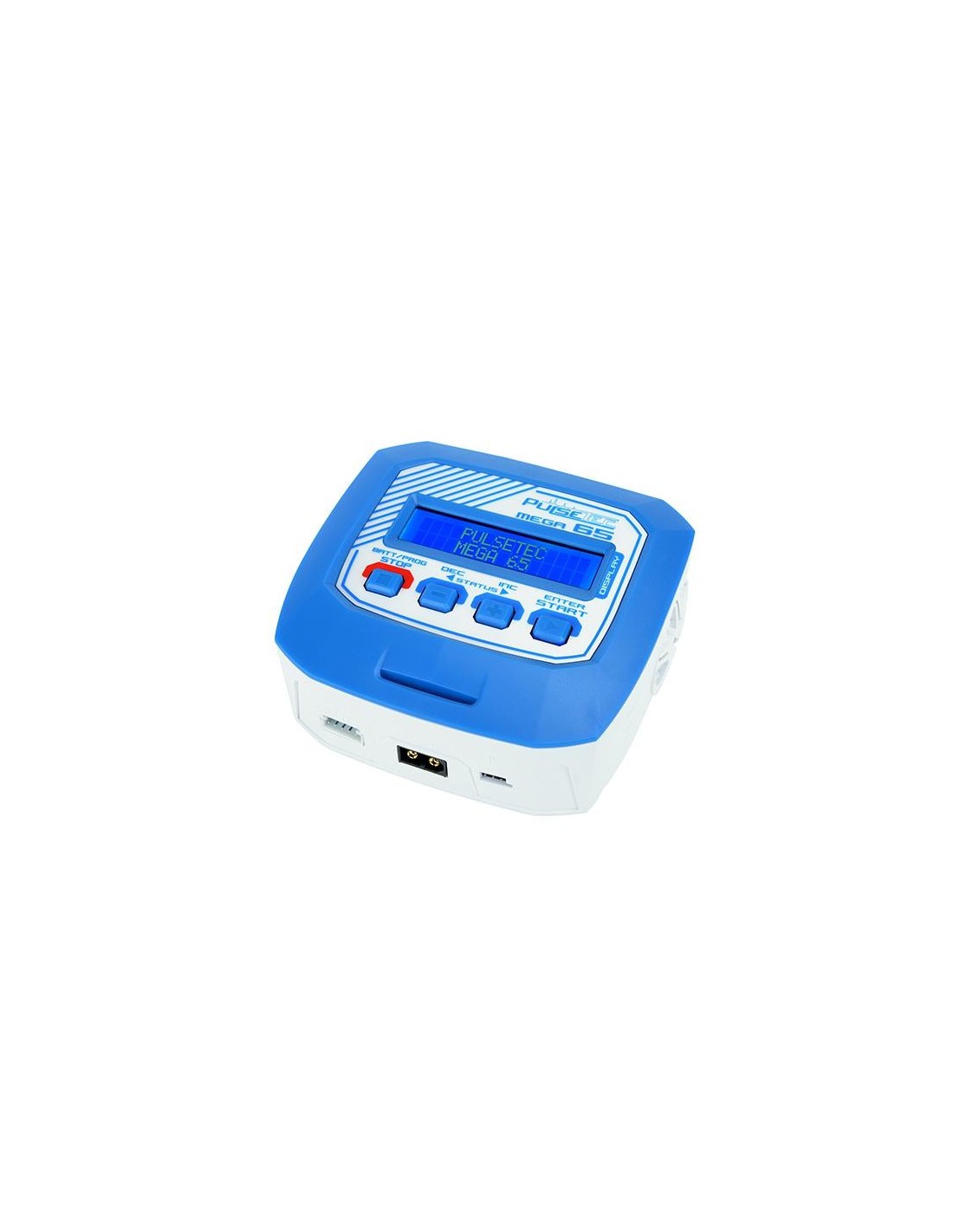

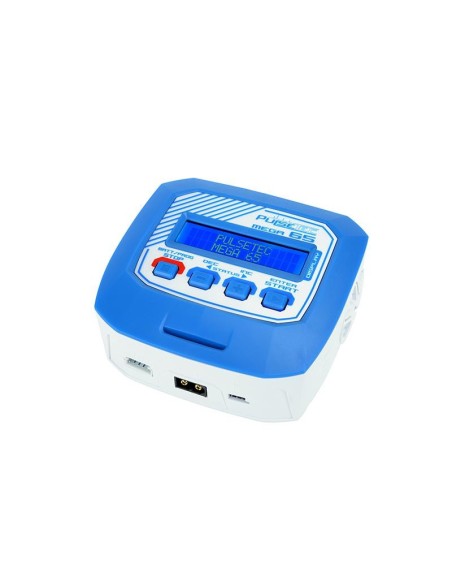

The LCD display provides all the information needed to navigate through the various programs. The MEGA 65 is equipped with several outstanding features found only in high-end battery chargers.

Features:

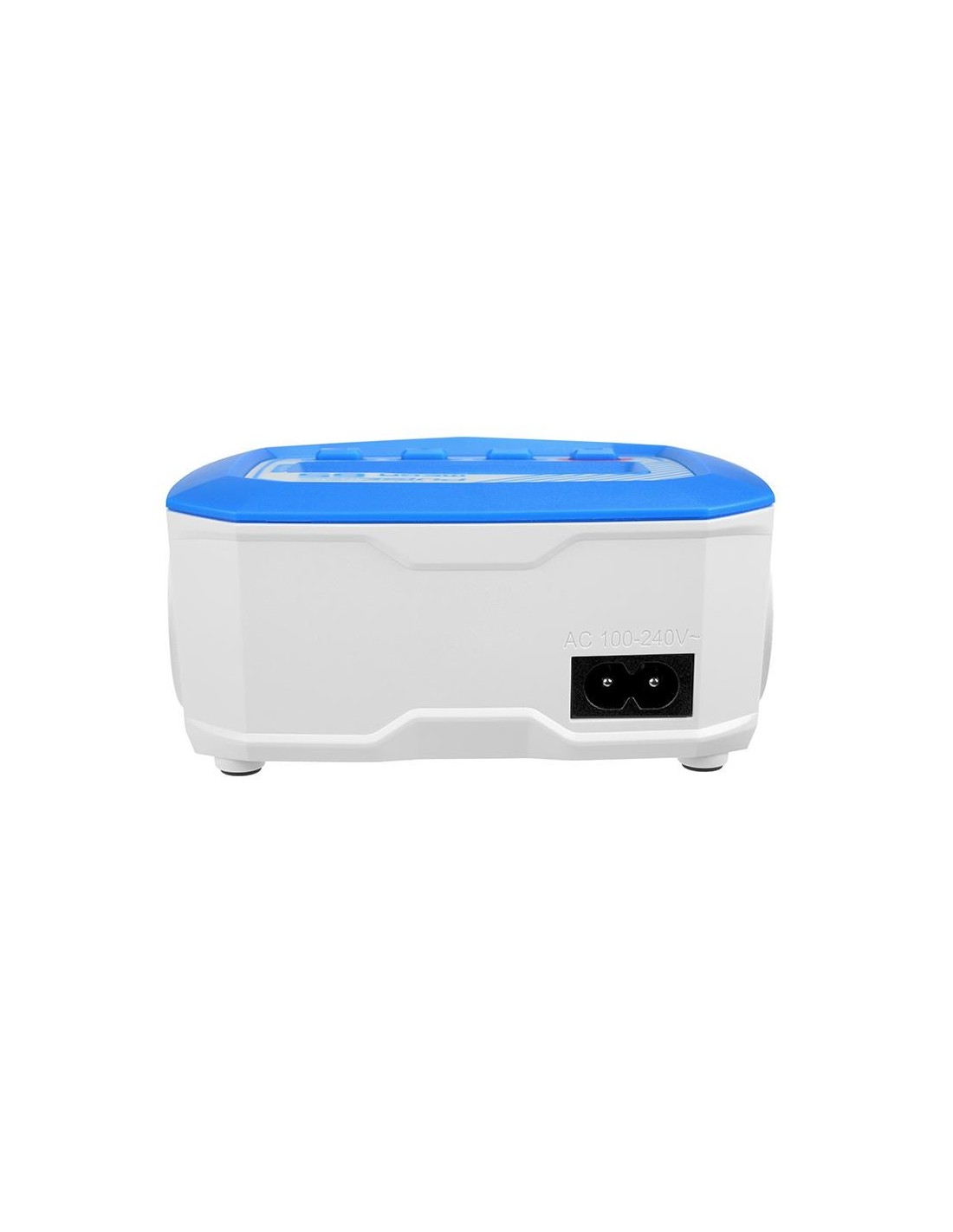

Input voltage: AC 100-240V
Charging circuit power: 65W
Discharging circuit power: 10W
Charging current: 0.1 - 6A
Discharging current: 0.1 - 2A
Balancing port: 200 mA max. / Cell
Peak charge current: 20mA-300mA & Off
Number of LiPo / LiFe / LiIon / LiHV cells: 2-4 S
Cell voltage end of charge:
LiPo: 4.20V ± 0.02V
LiFe: 3.60V ± 0.02V
LiIon: 4.10V ± 0.02V
LiHV: 4,35V ± 0,02V
Number of NiMH / NiCd cells: 6-8 cells
Battery voltage PB: 6-12V
Dimensions: 117x105x55mm
Net weight: 315g
>
User manuals

French
Deutch
