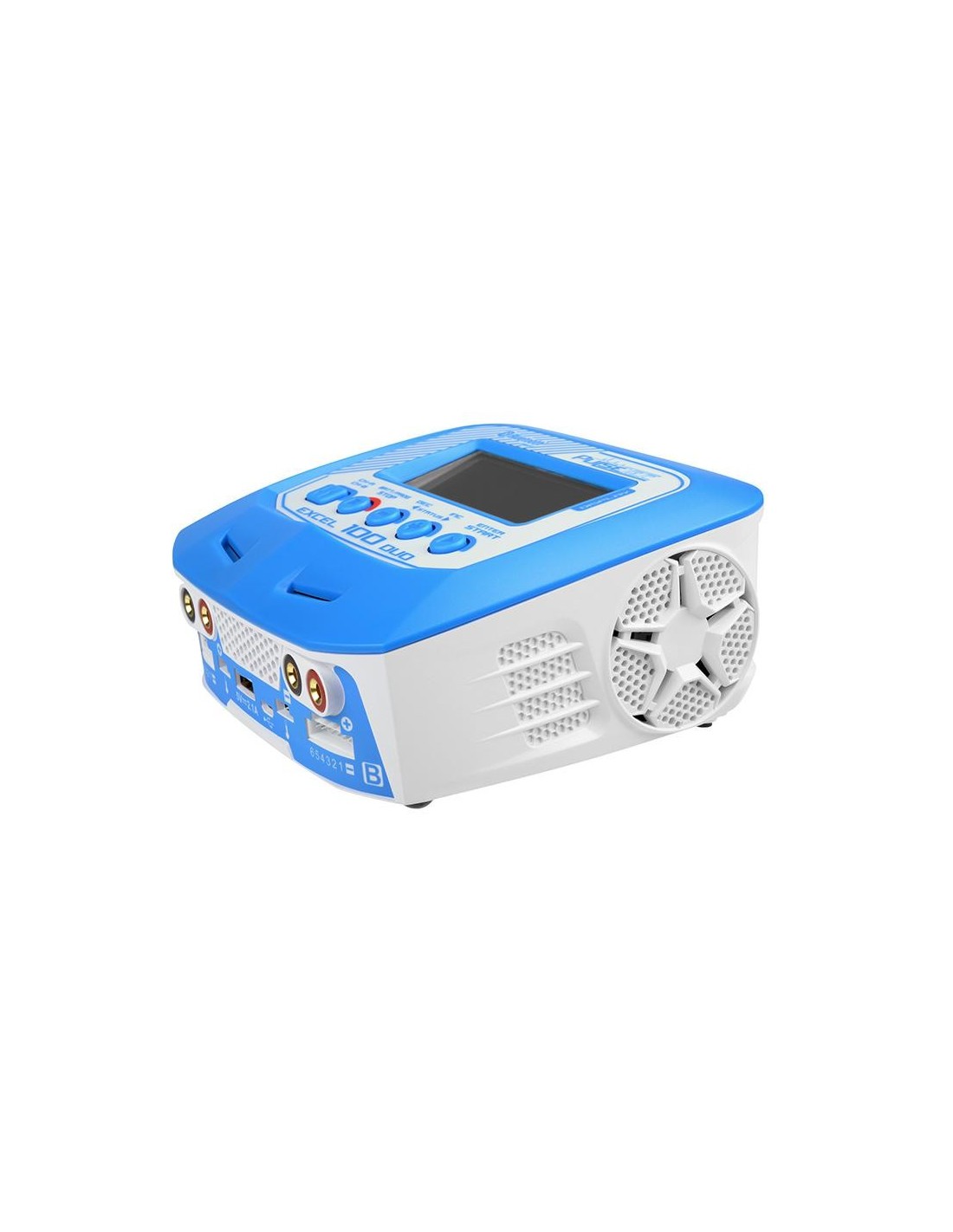

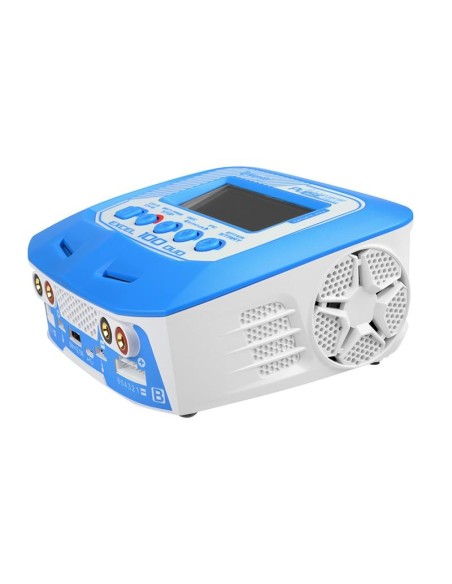

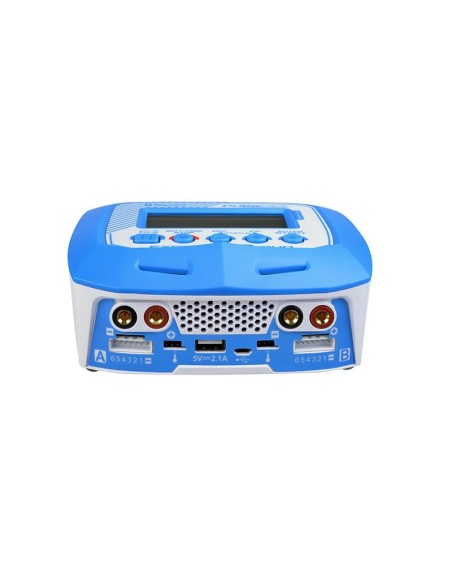

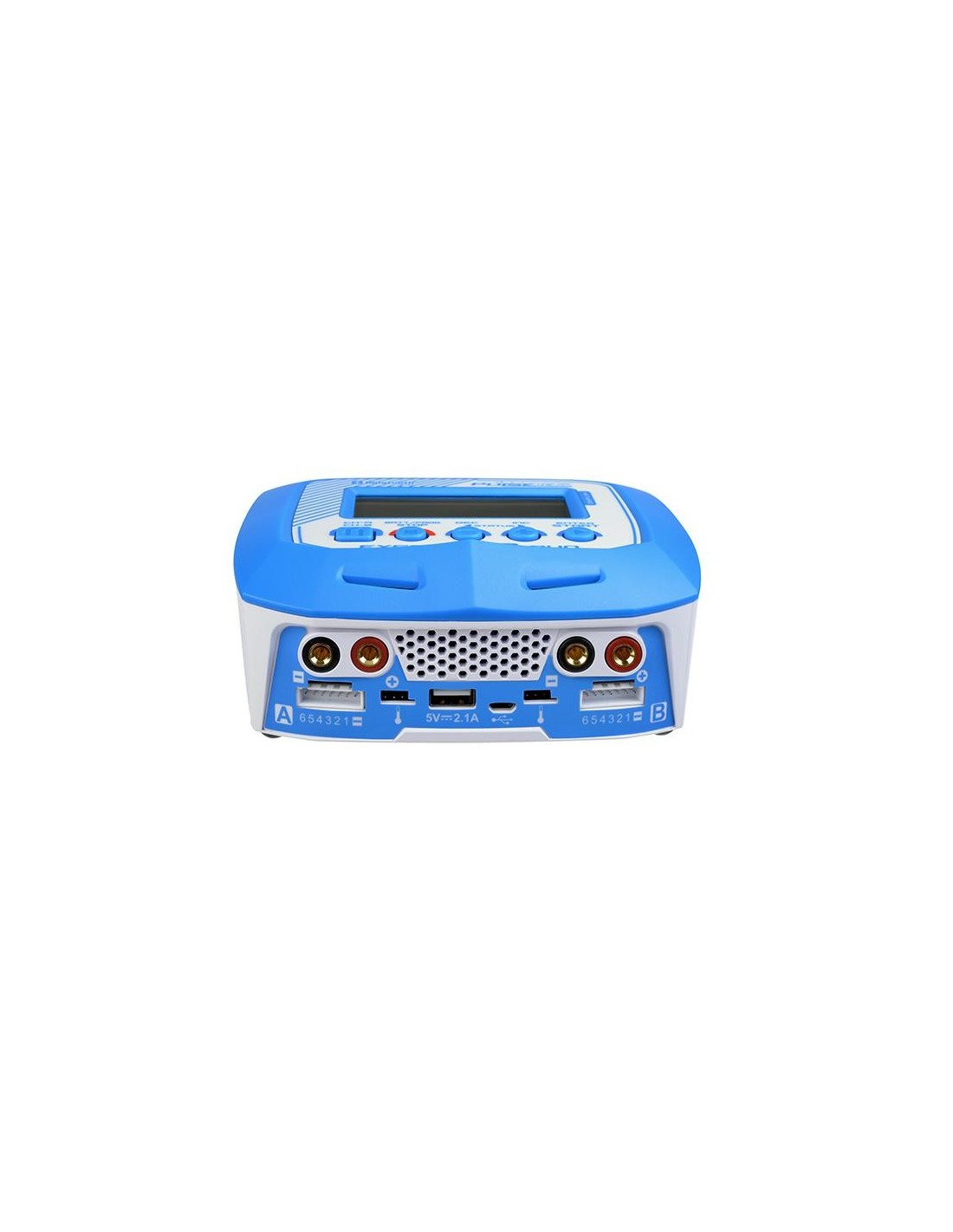

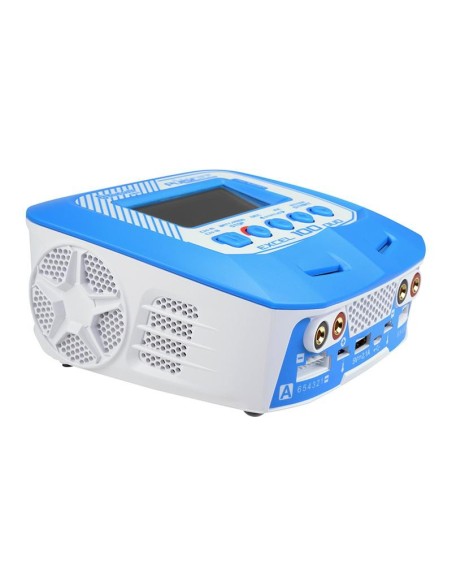

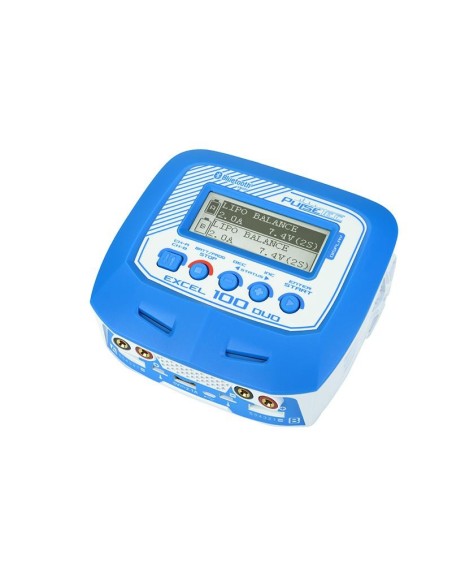

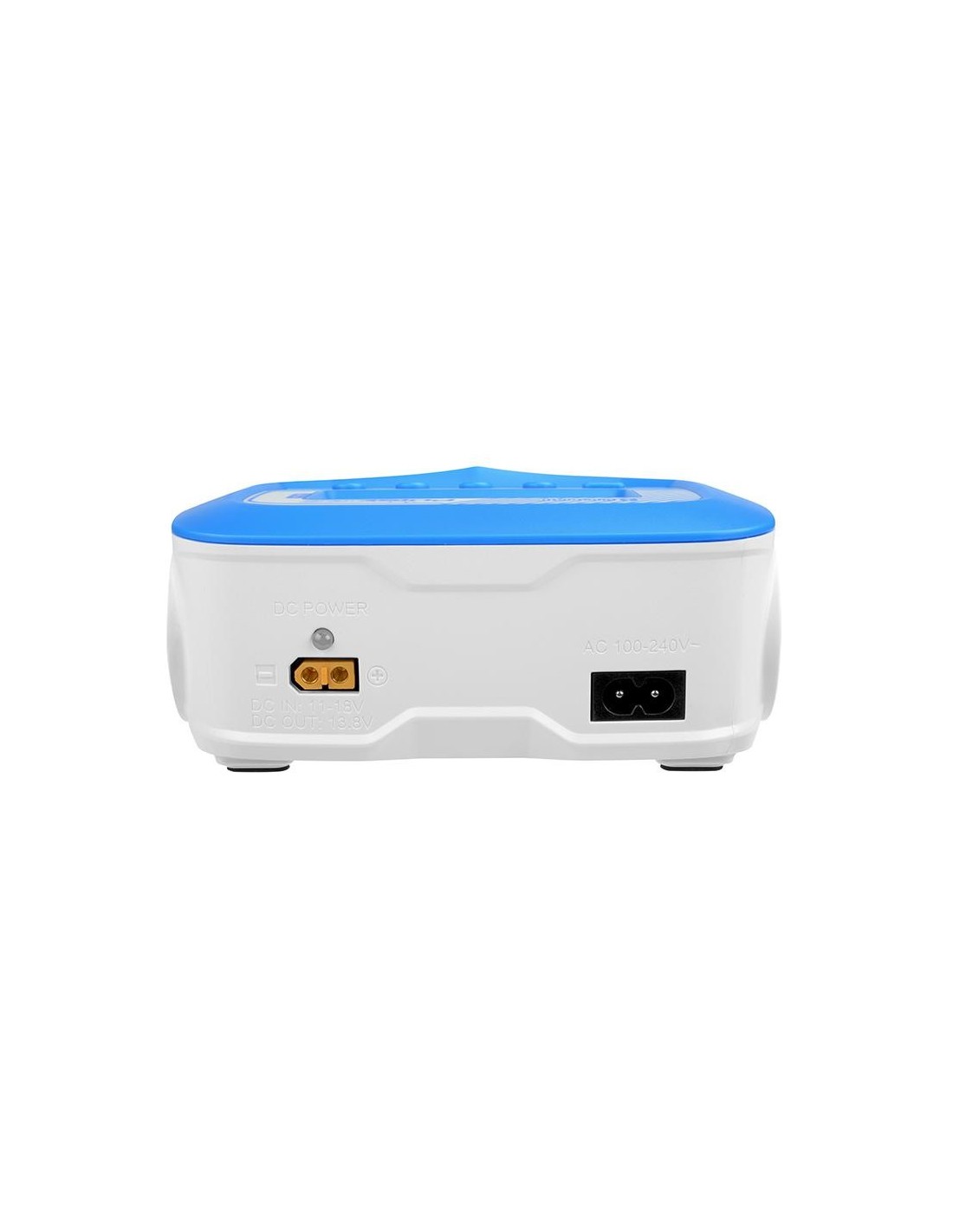

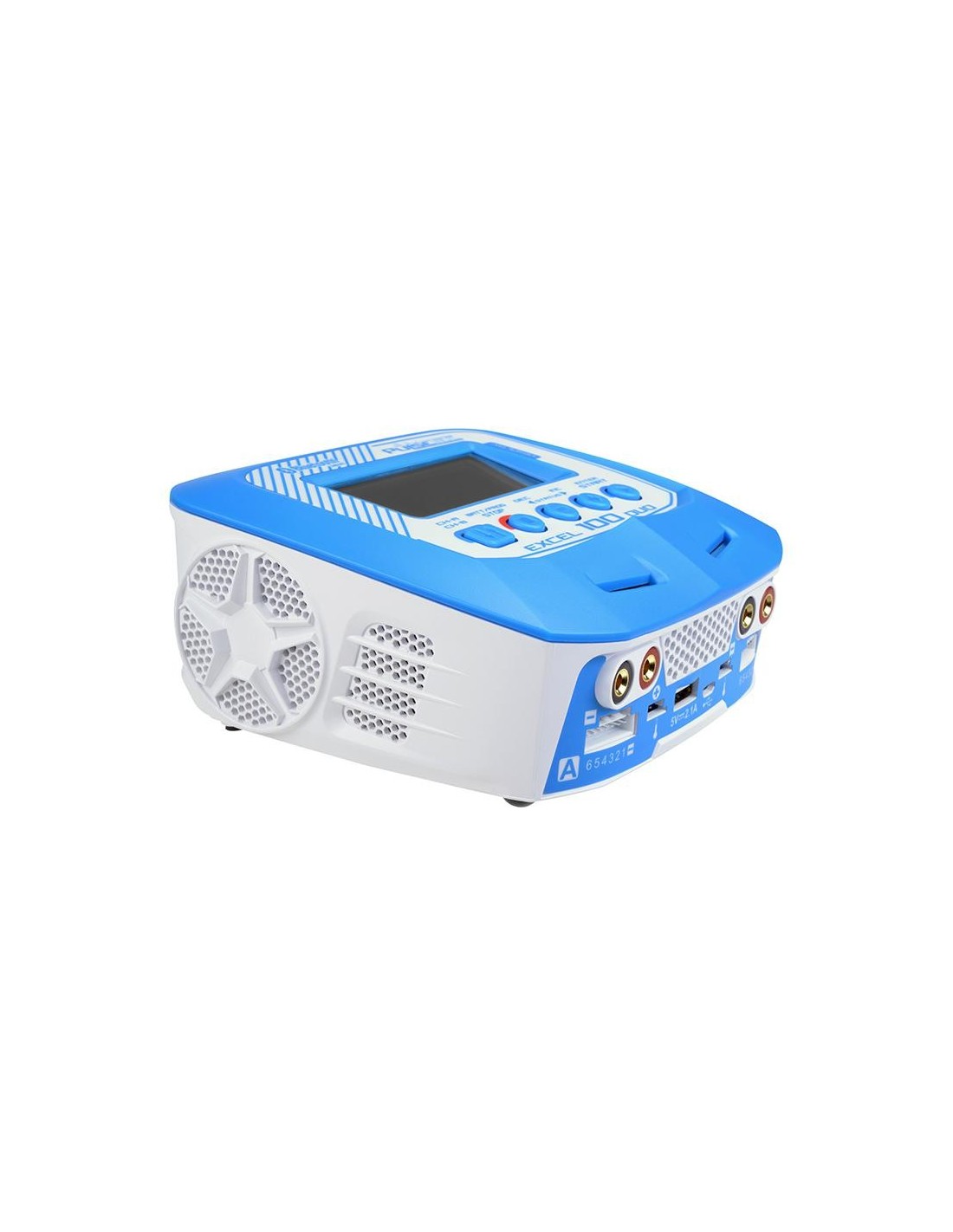

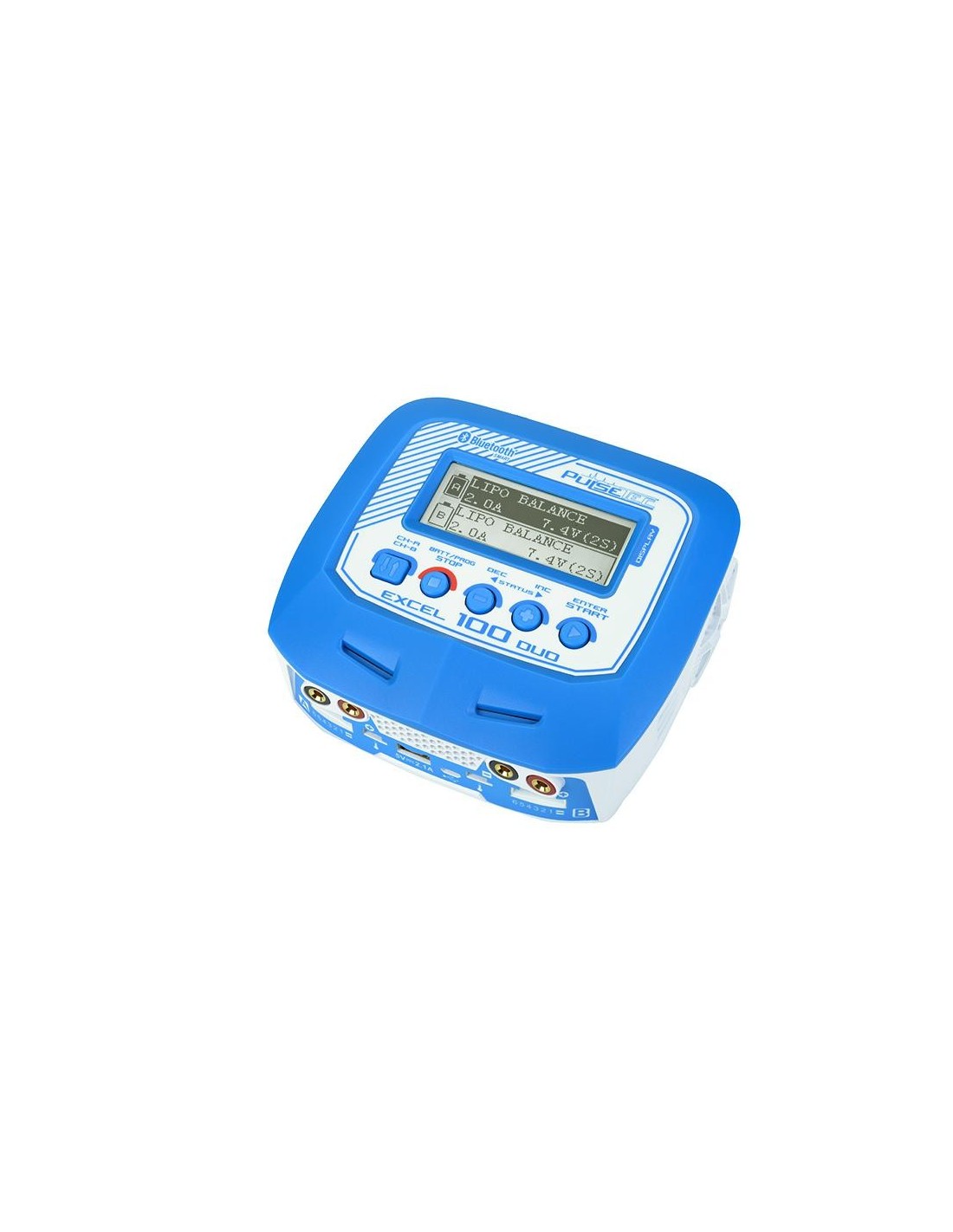

DUAL PULSETEC EXCEL 100 CHARGER

The EXCEL 100 DUO AC / DC charger is a dual-output charger with two independent circuits capable of simultaneously charging all types of LiFe, LiIon, LiPo, LiHV, NiMH, NiCd and PB batteries.
The EXCEL 100 DUO can charge 2 batteries simultaneously from 1 to 6 s, Nicd or Nimh from 1 to 15 cells or lead-acid from 2 to 20 V.
current is adjustable from 0.1 to 10.0 A with a maximum of 100 W in AC mode or 2x 100 W in DC mode. The Excel 100 Duo is packed with incredible features unique in its price range. To name but a few: large LCD display, charge/discharge functions, 100W power supply, voice control, IR battery meter, etc. The charger features Bluetooth 4.0 connectivity, enabling remote control and monitoring of the EXCEL 100 DUO via the PULSETEC LINK app on any iOS or ANDROID portable device, such as a smartphone, iPad or iPhone.
The EXCEL 100 DUO can be connected to a PC to update the firmware, or use the PULSETEC CHARGEMASTER software to monitor the charger during charging.

Specifications:

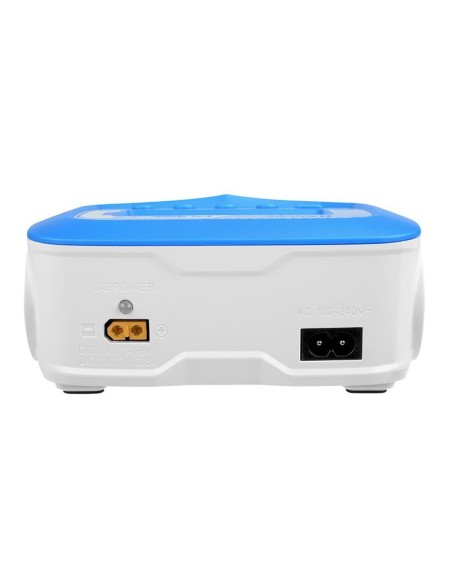

Input voltage: AC 100-240V / DC 11-18V
Charging circuit power: AC 100W / DC (2x) 100W
Discharge circuit power: 2x 10W
Charging current: 2x 0.1 - 10A
Discharge current: 2x 0.1 - 2A
Balancing port: 300 mA max. / Cell
Peak charge current: 50mA-300mA & Off
Number of LiPo / LiFe / LiIon / LiHV cells: 2x 1-6 S
Cell voltage end of charge:
LiPo: 4.20V ± 0.02V
LiFe: 3.60V ± 0.02V
LiIon: 4.10V ± 0.02V
LiHV: 4.35V ± 0.02V
Number of NiMH / NiCd cells: 1-15 cells
Battery voltage PB: 2x 2-20V
DC power output: 13.8 V - Max. 100W
Dimensions: 153x140x67mm
Net weight: 668g
