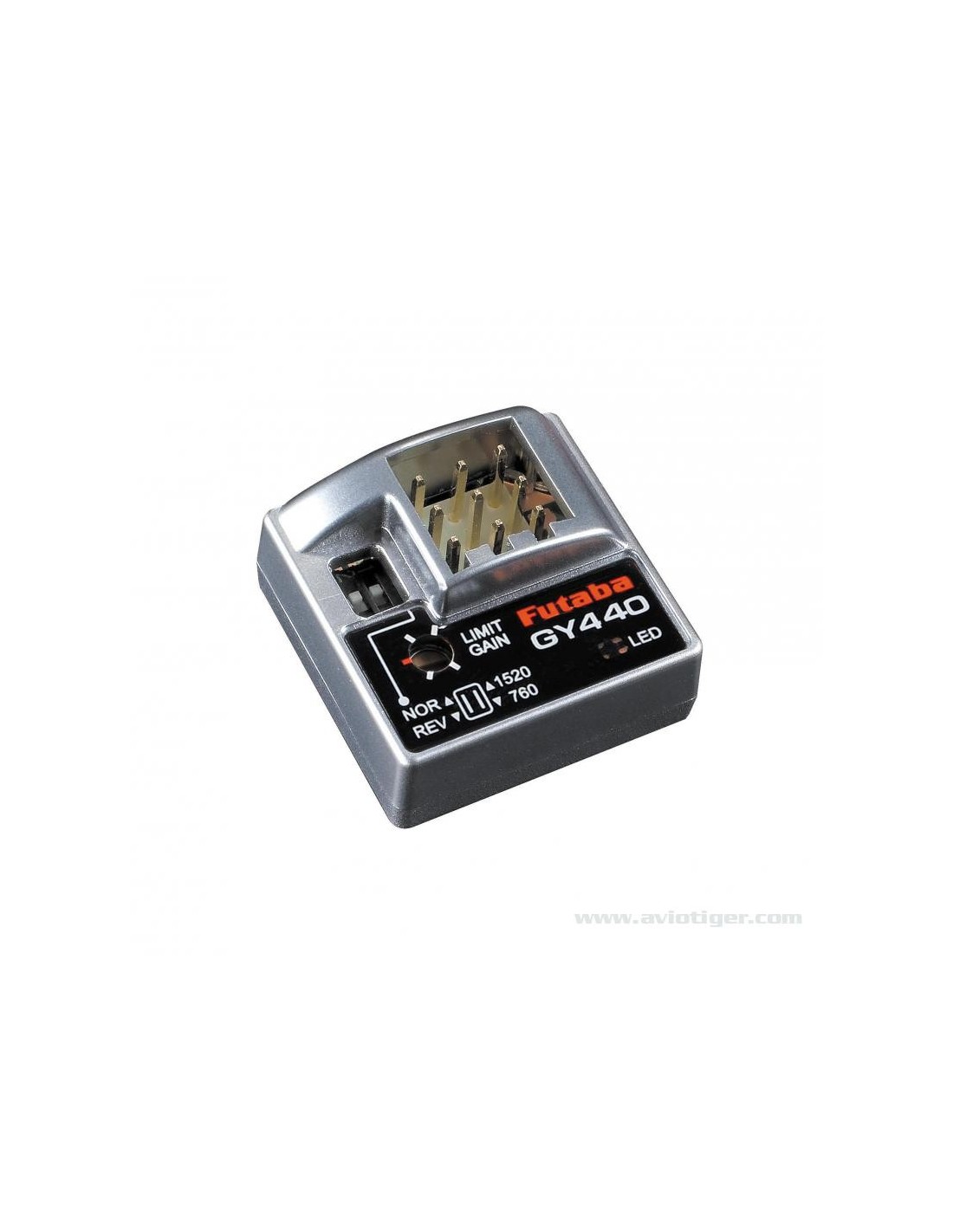

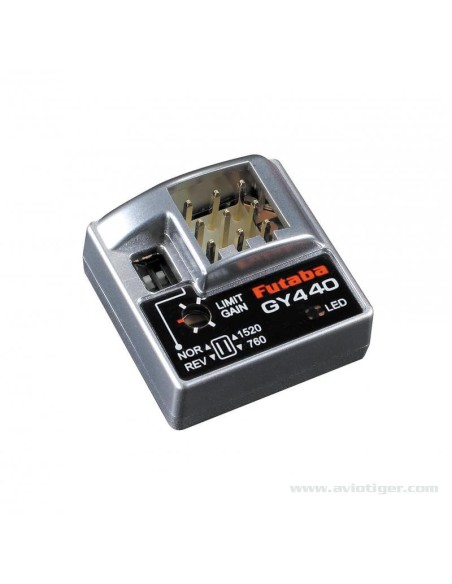

The GY440 helicopter gyro weighs just 3.7g. It is the replacement for the GY430.
The small size is achieved through the use of the latest MEMS sensor technology (MEMS: "Micro Electro Mechanical Systems").
Fast control behavior and "hard lock" are another advantage of MEMS sensors.
Suitable for all types and sizes of helicopter (electric and combustion), including small, light-weight helicopters where high control speeds are required.
All necessary adjustments can be made using a switch or controller on the gyro itself; no PC or adjustment software is required.
Both connection sides are pluggable and can be easily adapted to the model using different connection cables (plug-and-socket) of different lengths.
Sensor: MEMS
Power supply: 4 to 8.4v
Power consumption: 30mA
Operating temperature: -10 to 45°
Dimensions: 20.5x20.5x11 mm
Weight: 3.7gr
Functions: Touch-sensitive trim, Control LED, Servo selection (1520Us, 760Us), S.BUS/S.BUS2 socket Note: suitable for digital servos only!
The small size is achieved through the use of the latest MEMS sensor technology (MEMS: "Micro Electro Mechanical Systems").
Fast control behavior and "hard lock" are another advantage of MEMS sensors.
Suitable for all types and sizes of helicopter (electric and combustion), including small, light-weight helicopters where high control speeds are required.
All necessary adjustments can be made using a switch or controller on the gyro itself; no PC or adjustment software is required.
Both connection sides are pluggable and can be easily adapted to the model using different connection cables (plug-and-socket) of different lengths.
Sensor: MEMS
Power supply: 4 to 8.4v
Power consumption: 30mA
Operating temperature: -10 to 45°
Dimensions: 20.5x20.5x11 mm
Weight: 3.7gr
Functions: Touch-sensitive trim, Control LED, Servo selection (1520Us, 760Us), S.BUS/S.BUS2 socket Note: suitable for digital servos only!
