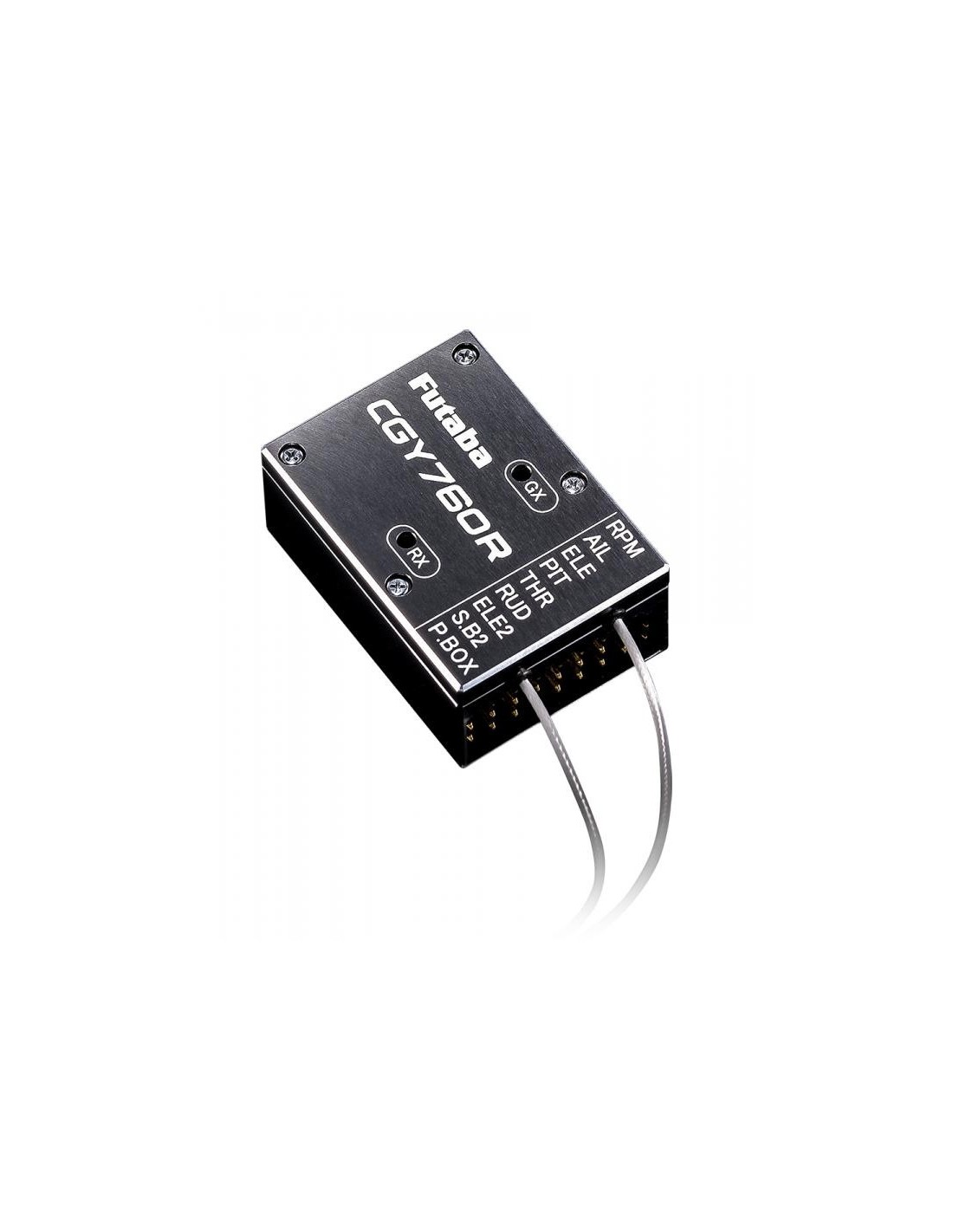

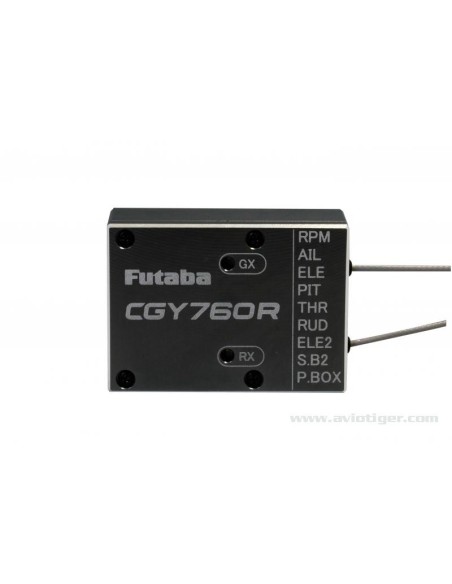

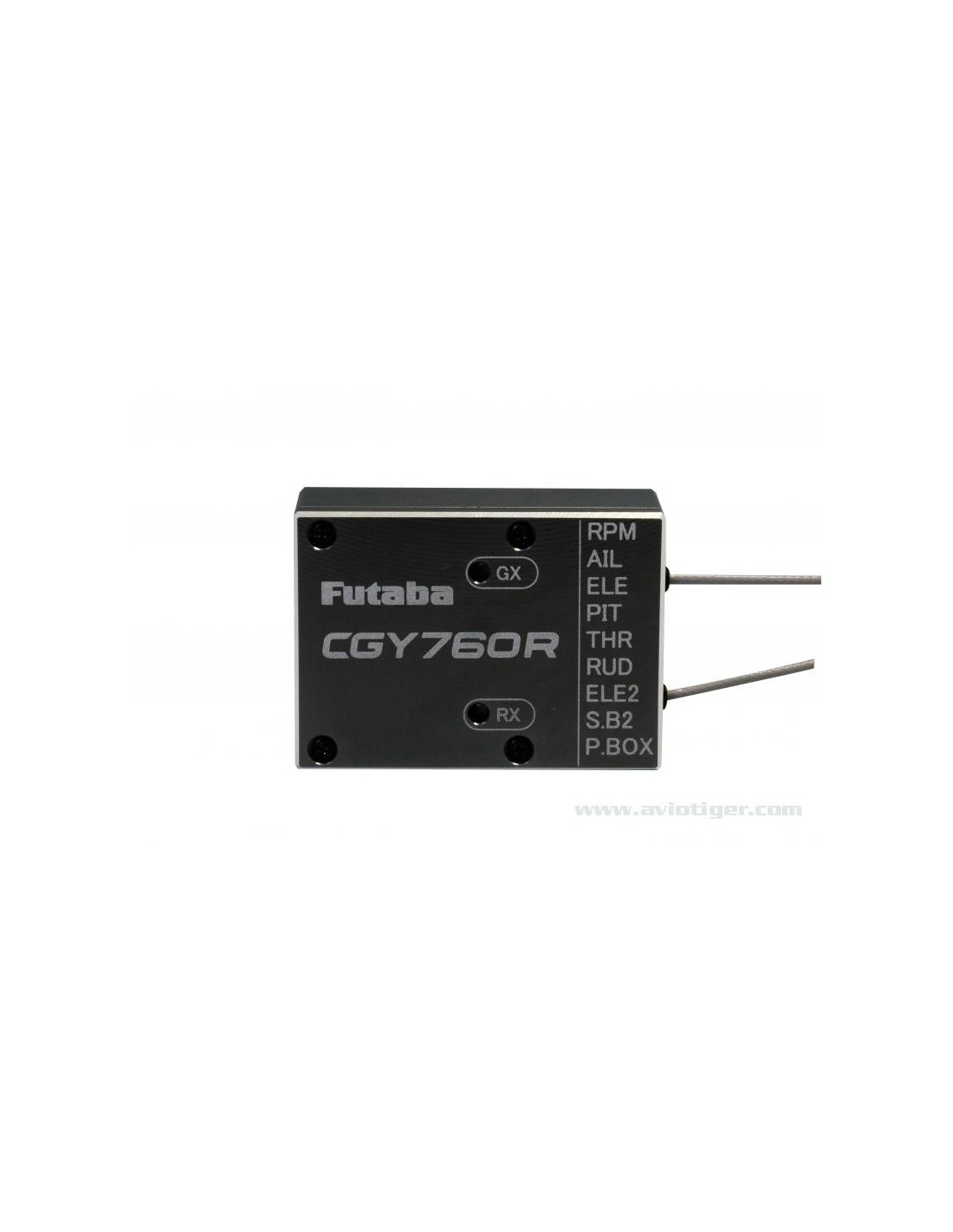

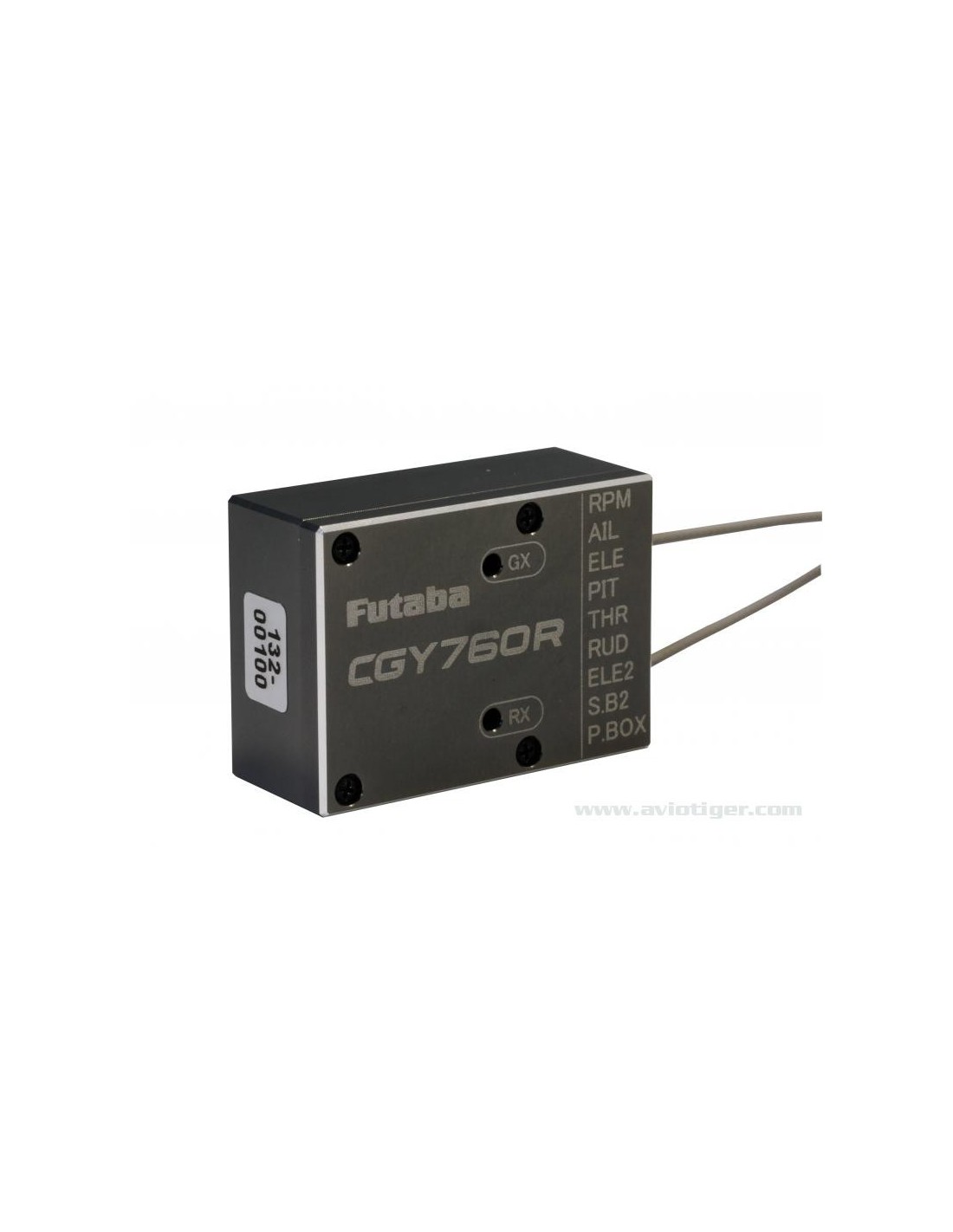

GYRO CGY760R WITH PROGRAMMING BOX

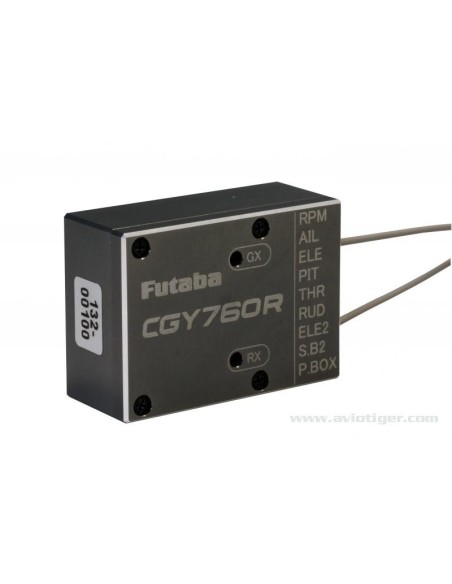

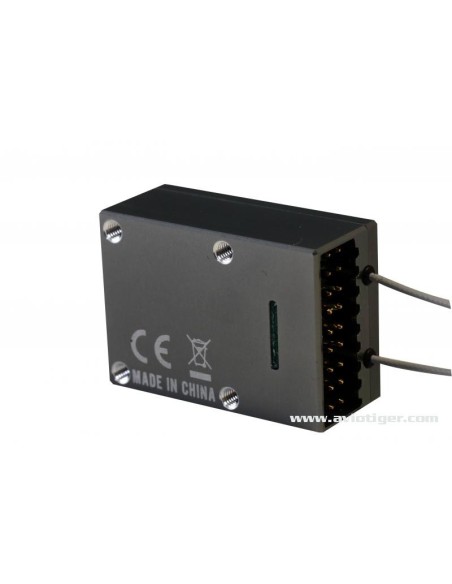

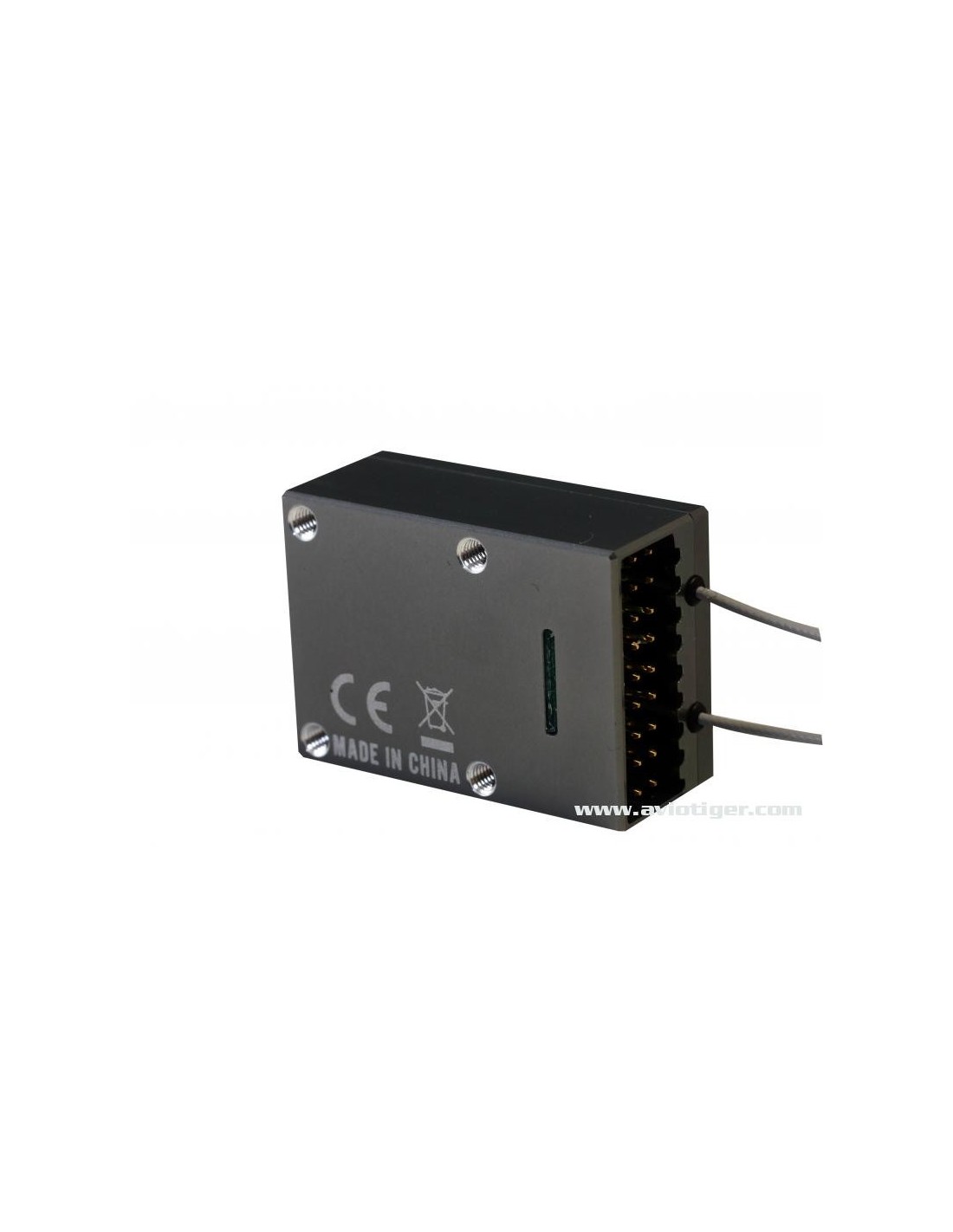

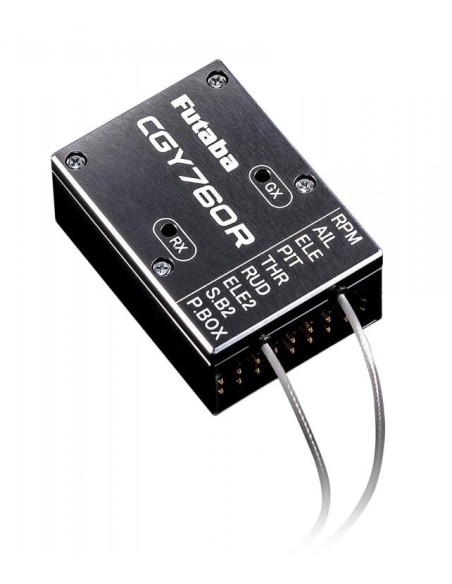

The all-new CGY760R is a course-keeping gyroscope with integrated receiver and speed controller.

This version includes the GPB-1 unit (programming unit)!
CGY760R features:
- Easy installation: all in one!
- size: 37.5 x 26.8 x 16.0 mm
- weight: 20.2 g
- Housing with aluminum anodization.
- Holes for mounting on helicopter chassis.
- Upgrade available (CIU2 or CIU3 required)
- Adjustments possible via transmitter and GB1 box
- The swash 760 uSec servo (in planning) will be available at a later date.

Gyro section:
PID control already proven on CGY750.
Multi-directional mounting.
Anticouple:
- Digital (1520uSec / 760uSec) and analog (1520uSec) servos available.
- 2 types of adjustment methods, 3D and Sports.
- some pre-set programs.

Lateral and longitudinal swashplate:
- 2 types of adjustment methods, F3C and 3D.
- Supports swashplate types H3-90 / H3-120 / H3-140 / H4-00 / H4-45. - Digital (1520uSec / 760uSec *) and analog (1520uSec) servomotors are available. (* 760uSec mode is for the future.)
Speed controller:
- PID control loop.
- Usable for head speeds from 700 RPM to 4000 RPM.
- Digital (1520uSec) and analog (1520uSec) servomotors are available.
- Selectable governor or revolution-limiting mode.
- Advanced control algorithm provides more consistent RPM governance. - The sensor is compatible with the GV-1 and CGY750.
- The CGY760R also supports an optional rear plate rotation sensor.
- RPM data can be sent to the transmitter. (Telemetry function)

Receiver:
- FASSTest (18CH mode / 12CH mode) and T-FHSS AiR available. (Selectable on GPB-1 unit)
- Diversity antenna (2 antennas installed.)
- Telemetry functions. (Battery voltage, S.BUS sensor connected to S.BUS2 port and RPM data)
- ID-LINK method is identical to that of other FASSTest or T-FHSS Air receivers.

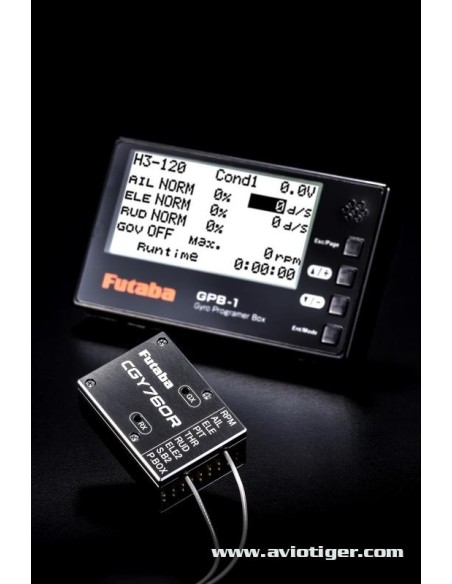

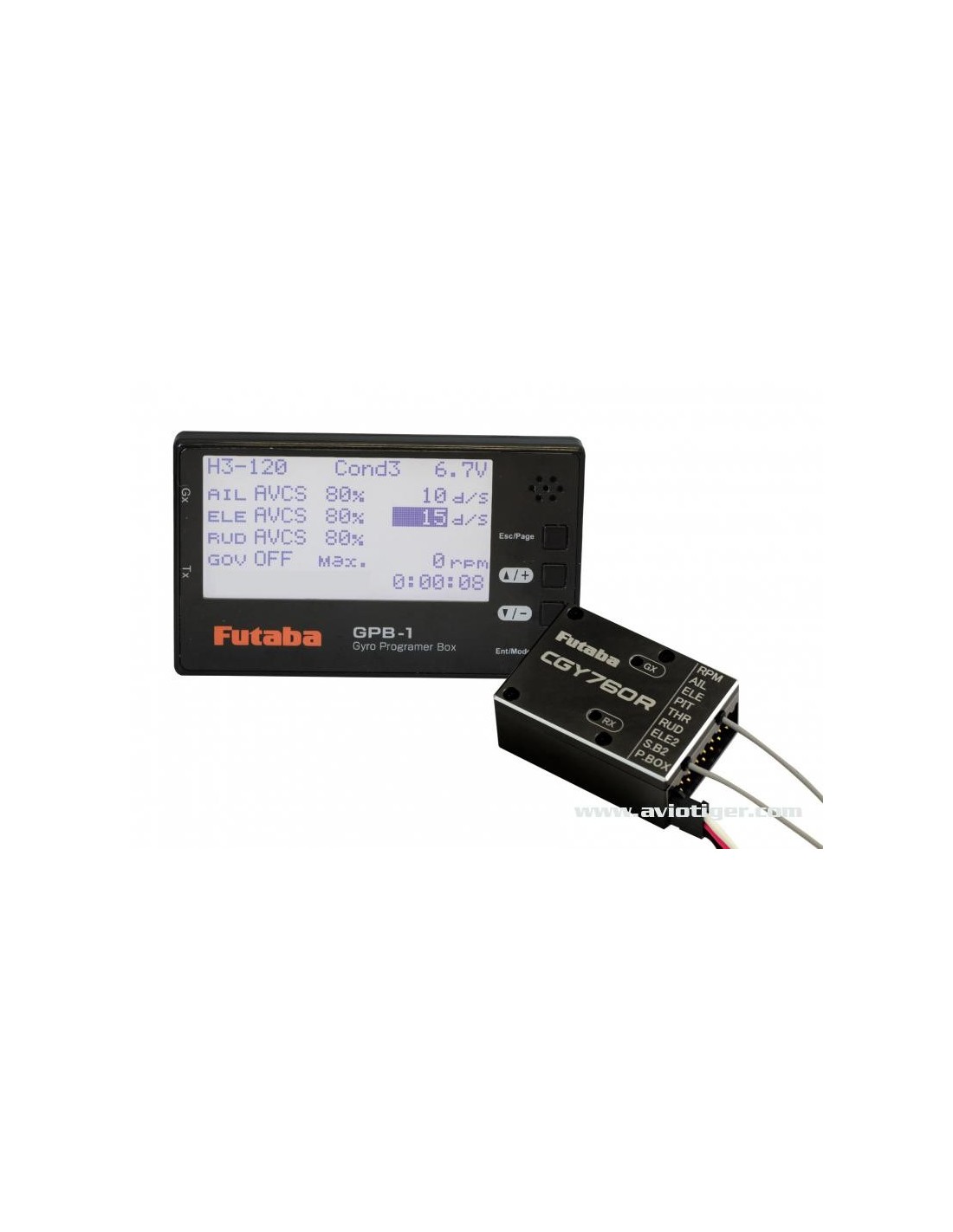

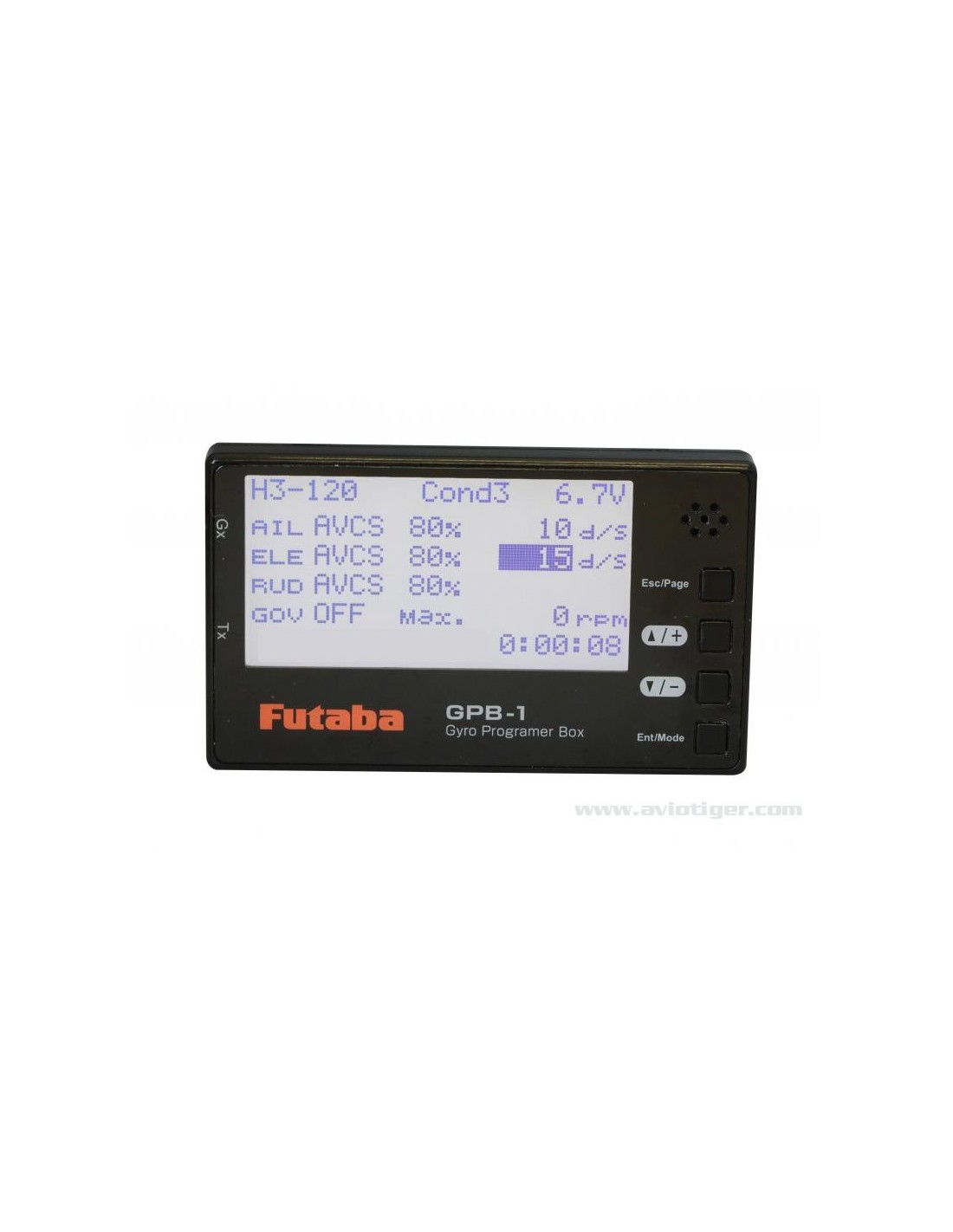

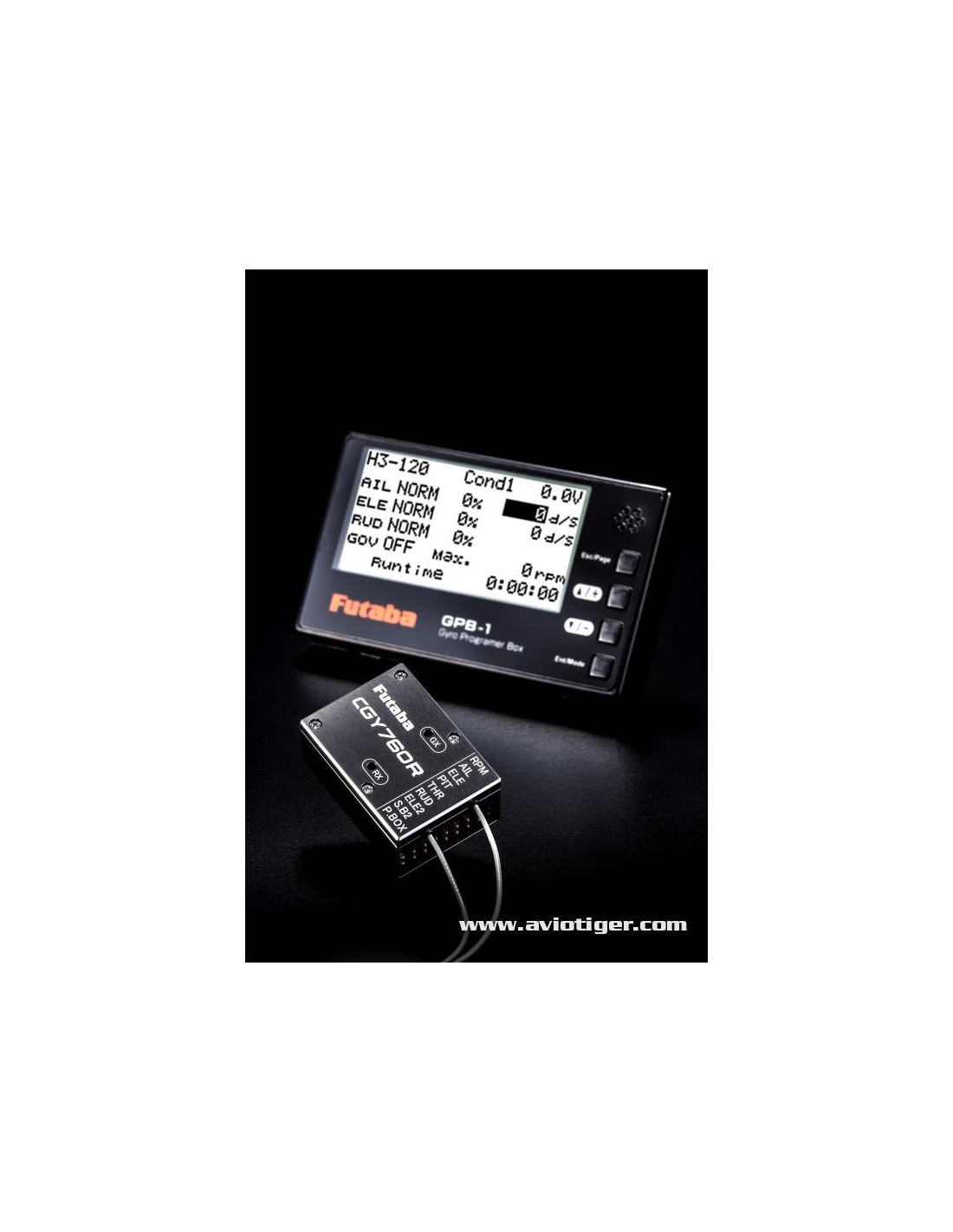

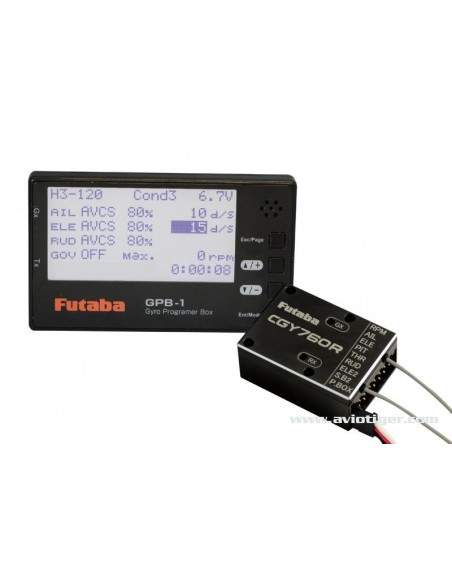

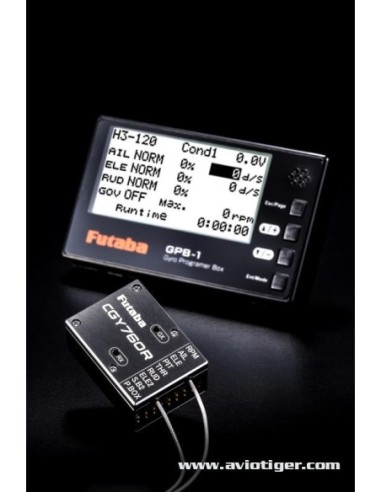

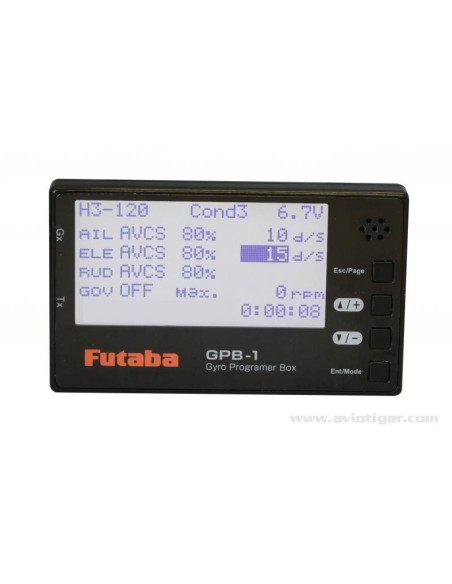

GPB-1:
Programming box for CGY760R.
GPB-1 features:
- Programming box for CGY760R. It is connected to the dedicated port on CGY760R.
- Backlit 128 x 64 dot monochrome LCD display (identical to T12K, T10J and T6K)
- 4 programming keys and beeper
- Power is supplied by CGY760R
- After power-up, it takes the setting parameters from the connected CGY760R and stores them in non-volatile memory.
-Wireless setting of certain parameters is available via the schooling function of the transmitter connected to GPB-1 via the dedicated cable.
