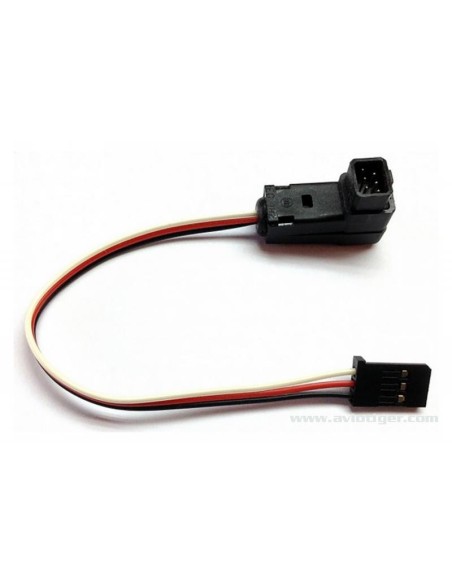

Adapter cable for FUTABA wireless schooling system.
With this adapter cable, any S.BUS receiver (whether T-FHSS, S-FHSS, FASSTest or FASST) can be connected to the schooling socket of the monitor transmitter.
However, it is essential that the S.BUS receiver connected to the monitor transmitter, using the WTR adapter, is of the same transmission type as the student transmitter, and of course linked to the student transmitter.
The monitor transmitter receives the control signal from the student transmitter (radio link 1, instead of the teacher-student cable) via the S.Bus output of the receiver connected to the monitor transmitter socket, processes it according to the settings in the schooling menu and sends a signal to the receiver in the model (radio link 2), although this can also be done in another modulation type.
With this simple method, wireless and inexpensive teacher-student operation on all modulation types is now very easily possible. (Safety tip: if the student transmitter is switched off, the software automatically switches to the control signal of the teacher transmitter, and the teacher automatically controls the model).
