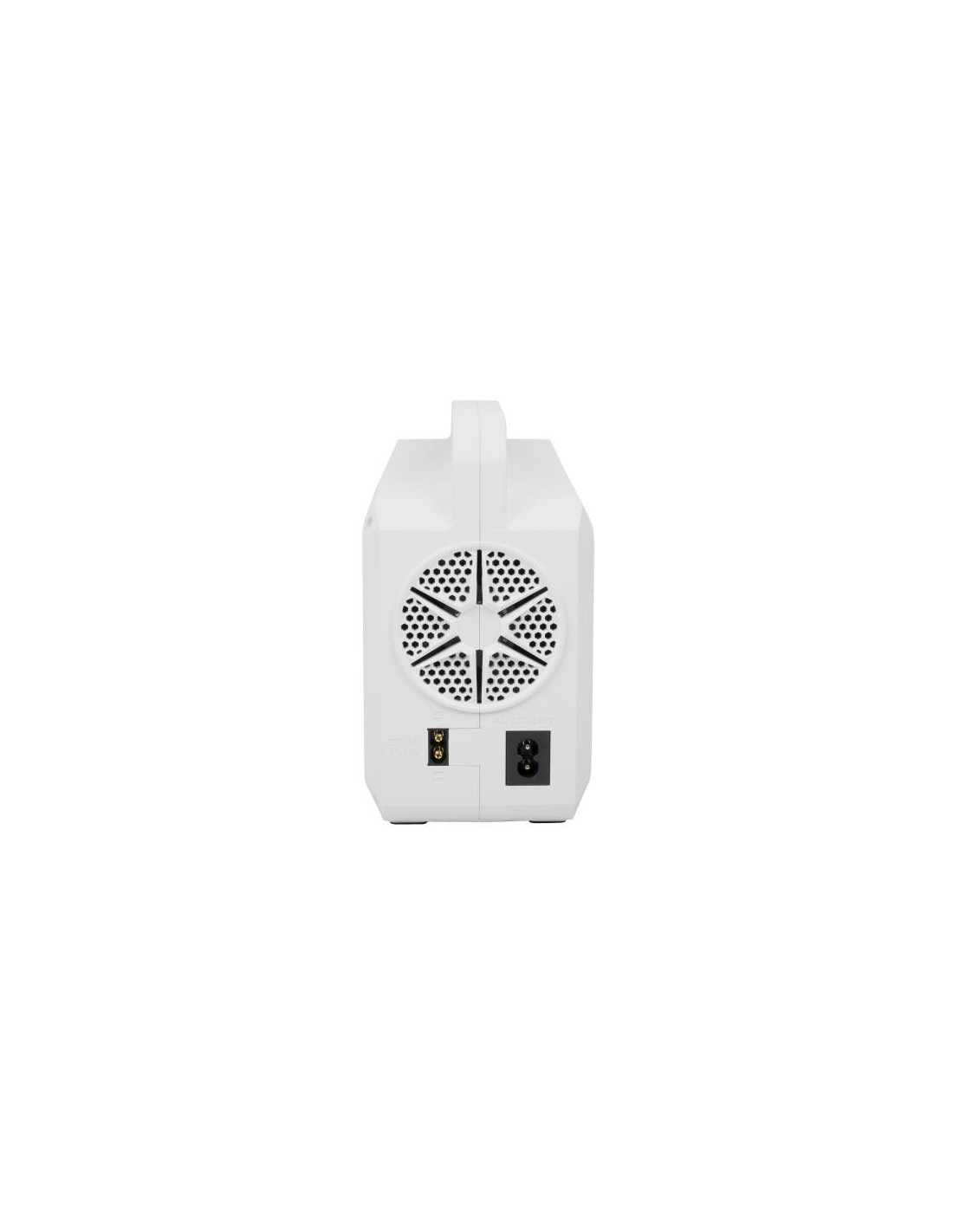

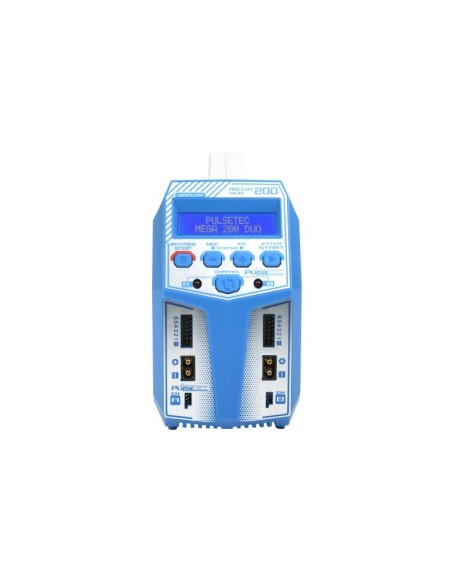

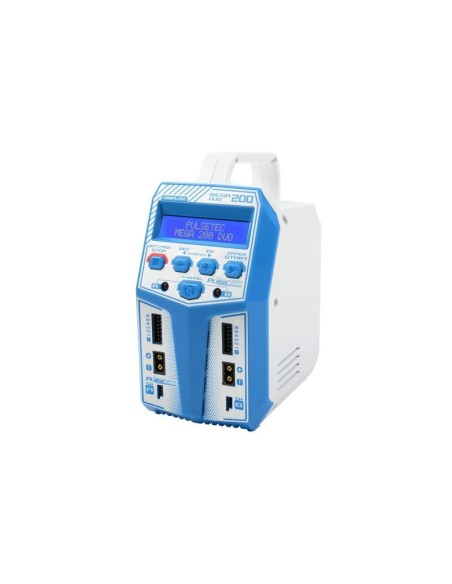

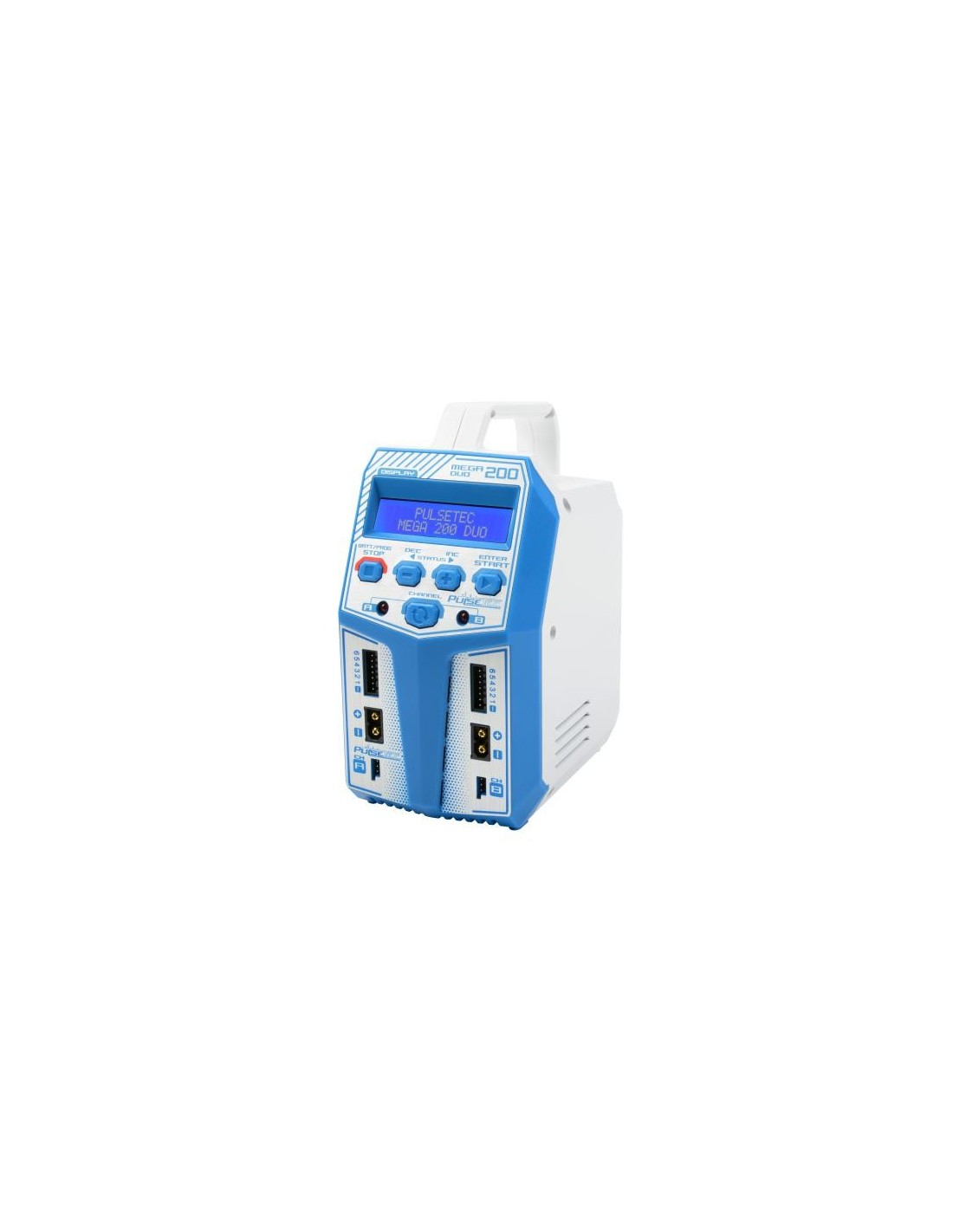

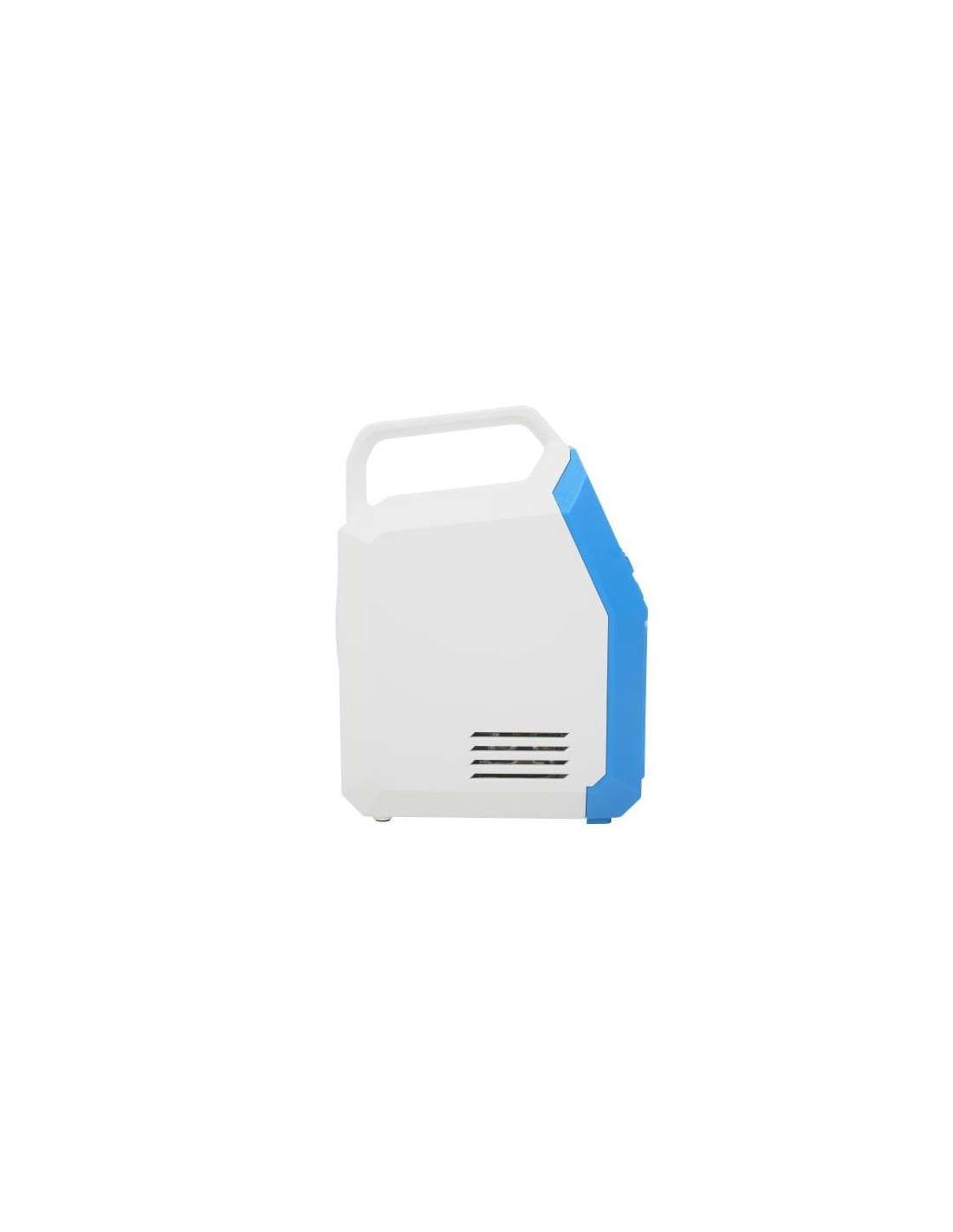

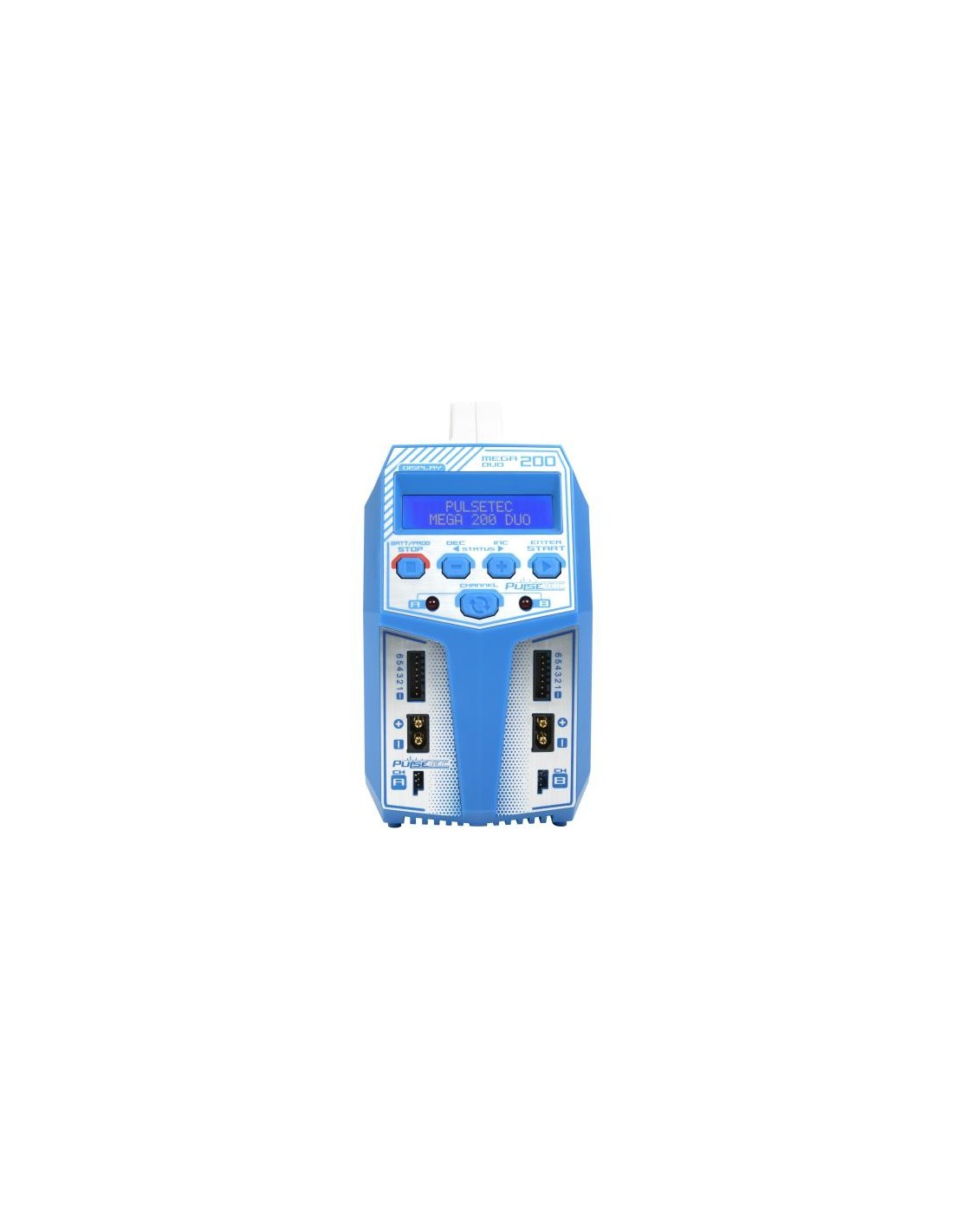

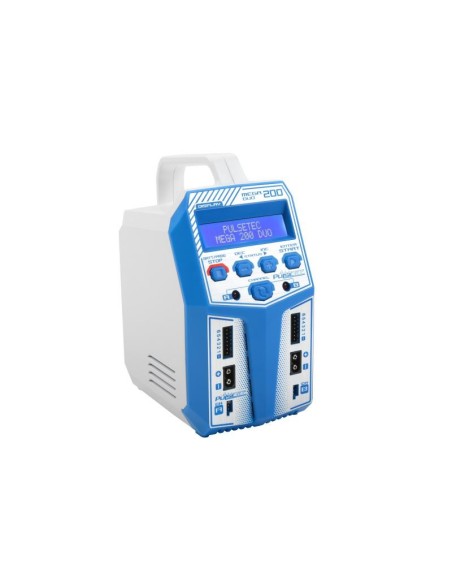

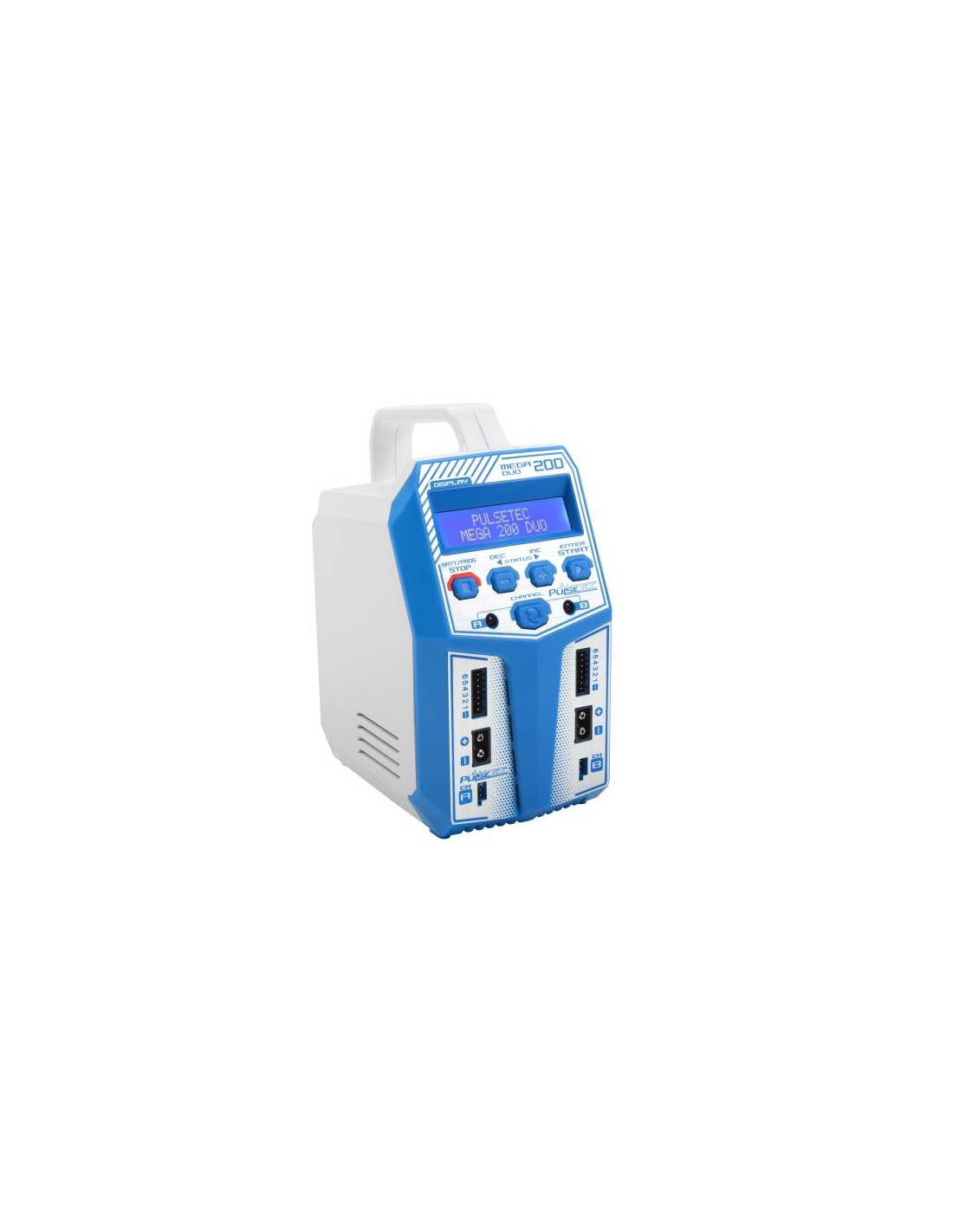

The PULSETEC MEGA 200 DUO AC / DC is a charger with two independent outputs, enabling you to charge 2 batteries at a time to their maximum capacity
. The batteries being charged don't even have to be identical.
You can connect different types (NiMH / NiCd / LiPo / LiFe / Lilon / LiHV / Pb) to either charging output.
The power of each output is 100W max.
The PULSETEC MEGA 200 DUO features an AUTO function which regulates the current supply during the charging or discharging process. Especially for lithium batteries, it can prevent overcharging, which could lead to an explosion through the user's own fault. It can disconnect the circuit automatically, and the alarm detects any malfunction.
All the programs in this product have been controlled by a two-way link and communication, to achieve maximum safety and minimize trouble. All parameters are user-configurable
The PULSETEC MEGA 200 DUO memorizes your last charge/discharge operation before power failure.
For Pb batteries, there are two other charging modes: AGM charging and cold charging. Battery memory (data/charging store)
The charger can store up to 10 different charge/discharge profiles for each output. Data relating to the battery's charging or discharging program settings can be stored, and users can call up this data at any time without any special program settings. End-of-charge voltage control. (TVC)
The charger allows the user to modify the final voltage. (for expert users only)
During the discharge process, MEGA 200 DUO can monitor and balance each battery cell individually. An error message will be indicated and the process terminated automatically if the voltage of a single cell is abnormal.
Special modes for specific needs. Fast charging reduces charging time.
The storage program enables you to control the final voltage of your battery in preparation for long-term storage, and extends the life of your battery.
NiMH / NiCd battery Re-Peak mode In "PEAK" charging mode, the charger can charge the battery once, twice or three times automatically. This ensures that the battery remains fully charged. Cyclic charging / discharging
1 to 5 cyclic and continuous charging processes> discharging or discharging> charging can be used to refresh and balance the battery to stimulate battery activity.
You can set the upper limit of charging current when charging your NiMH or NiCd battery; this is useful for NiMH batteries with low impedance and capacity in "AUTO" charging mode.
Battery voltage meter The user can check total battery voltage, highest voltage, lowest voltage and voltage per cell.
The user can check total internal battery resistance and internal resistance per cell.
Charge capacity is always calculated as charge current multiplied by time. If the charge capacity exceeds the limit, the process will be automatically terminated when you set the maximum value.
The battery's internal chemical reaction will cause the battery temperature to rise. If the temperature limit is reached, the process will be terminated. * This function is available by connecting an optional temperature sensor, not included.
Processing time: You can also limit the maximum processing time to avoid any possible faults.
Specifications:
Input voltage: AC 100-240V /DC 11V-18V
Charging circuit power: 2 X 100W
LCD display: 2x16
Discharge circuit power: 2x 10W
Charging current: 2x 0.1 - 12A
Discharge current: 2x 0.1 - 2A
Balancing port: 500 mA max. / Cell
Balancing connector: XH
Battery storage program.
Battery program memory: 10
Audible alarm.

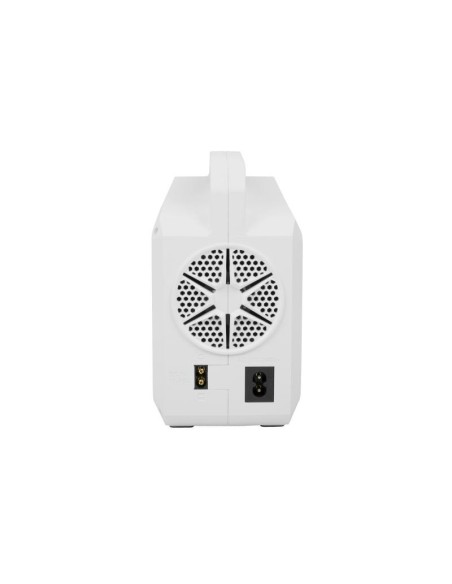

Cooling fan.
Adjustable end-of-charge and end-of-discharge cell voltage.
Number of LiPo/life cells: 1-6
Number of NiMH / NiCd cells: 1-15 cells
Number of PB battery cells: 1-10
Dimensions: 153x140x67mm
Net weight: 850g
